EPX-FHD

Seamless Flake Flooring - Medium Duty

Resinwerks EPX-FHD is a decorative seamless flake application engineered for commercial settings experiencing heavy traffic. This system features a double broadcast flake appliation for added build & impact resistance as well as a hi-wear urethane finish coat for enhanced protection from abrasion and chemical attack.

Ideally suited for all types of commercial settings including car dealership service lanes, retail and more! Available with optional EPX-SL base coat for added thickness of up to 100 mils. Choose standard Resinwerks flake blends, with hybrid stone, marble or even custom options to meet your design goals.


System Design

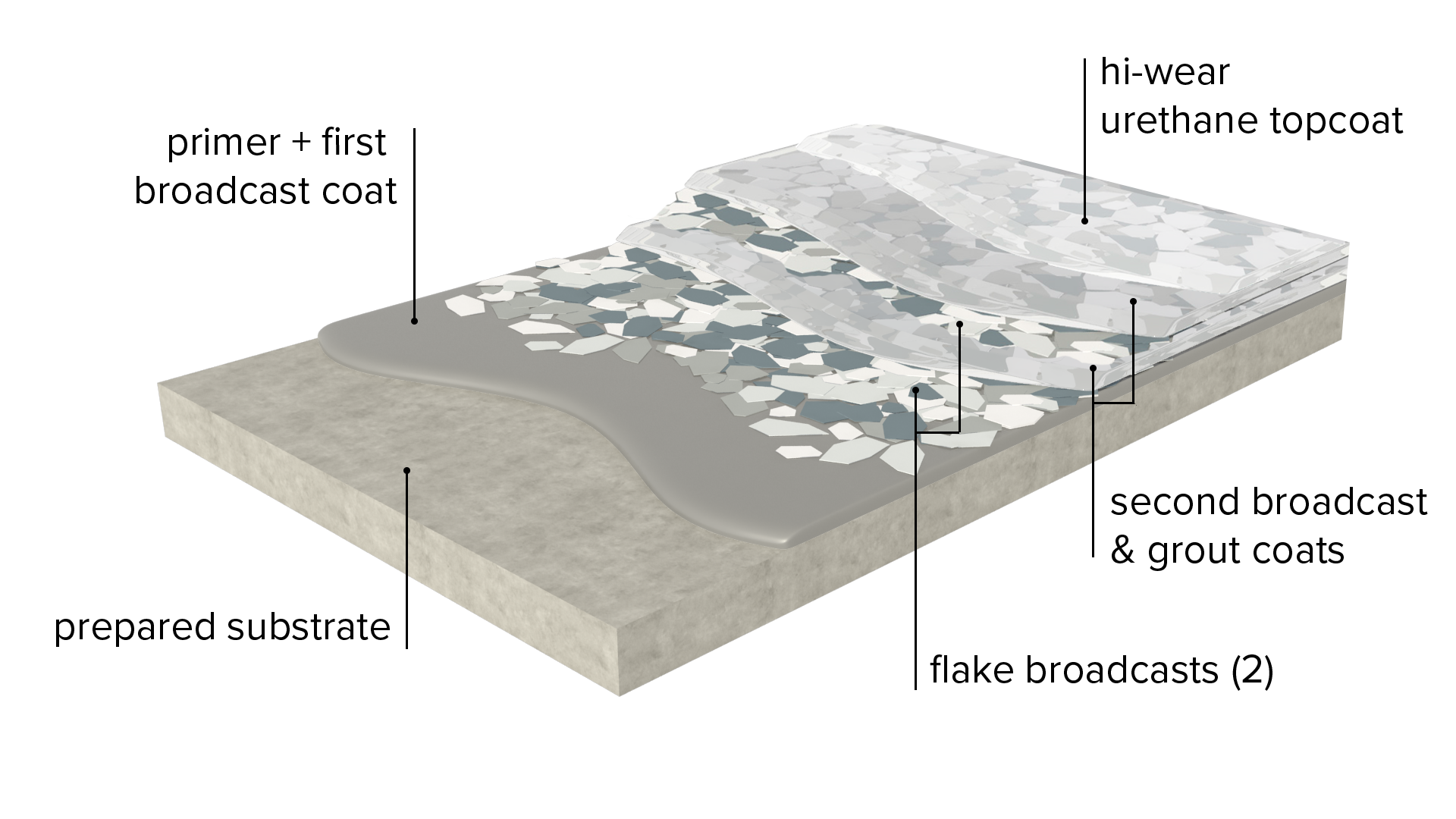

EPX-FHD is built with an epoxy primer & broadcast coat followed by either an epoxy or polyaspartic second broadcast coat, grout coat(s) and hi-wear urethane finish.

  • Available with optional EPX-SL intermediate coat for added build (60-100 mils) and impact resistance.
  • Traction levels may be adjusted depending on facility requirements.
  • Semi-Gloss or Satin finish options
EPX-FHD2 with labels-1
elkhart_tire

Markets and Applications

  • Animal clinics
  • Auto dealership service lanes
  • Retail showrooms
  • High-end Garages
  • Offices
  • Healthcare
  • Education



Download System Brochure

Resinwerks offers a variety of flooring solutions to match your project’s requirements. Download our free system guide to view the possibilities.
