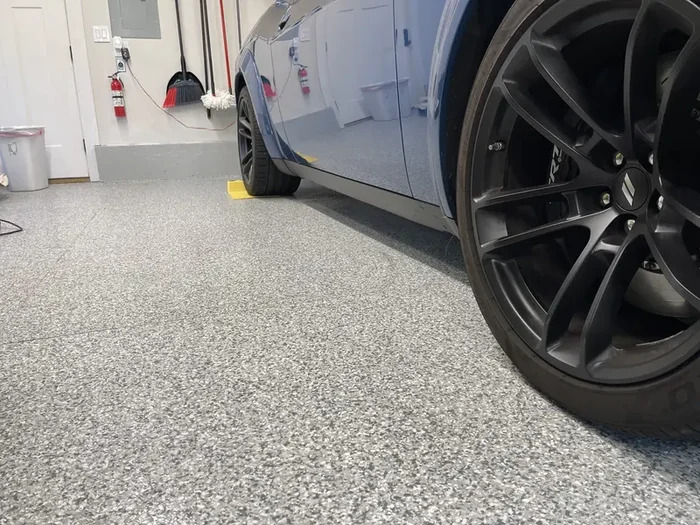

Chip and flake floor (41).min

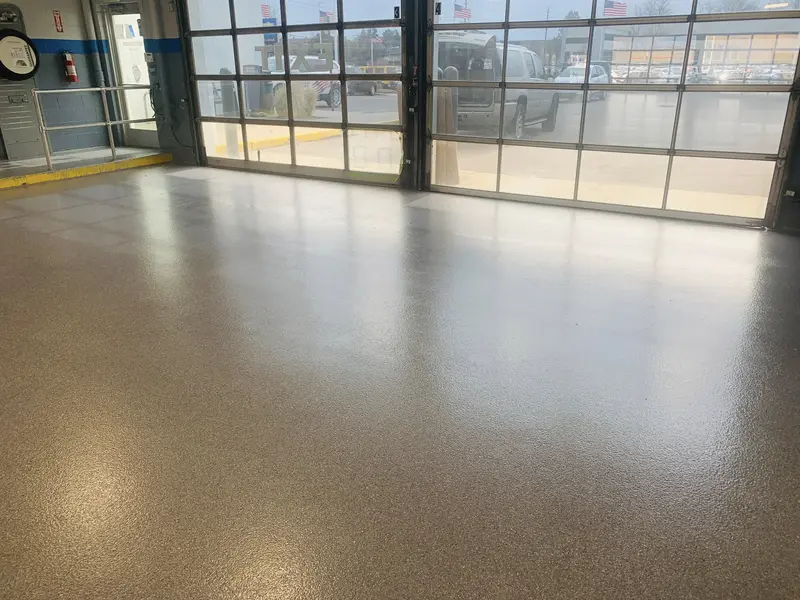

Chip and flake floor (6).min
Chip and flake floor (36).min
Chip and flake floor (12).min

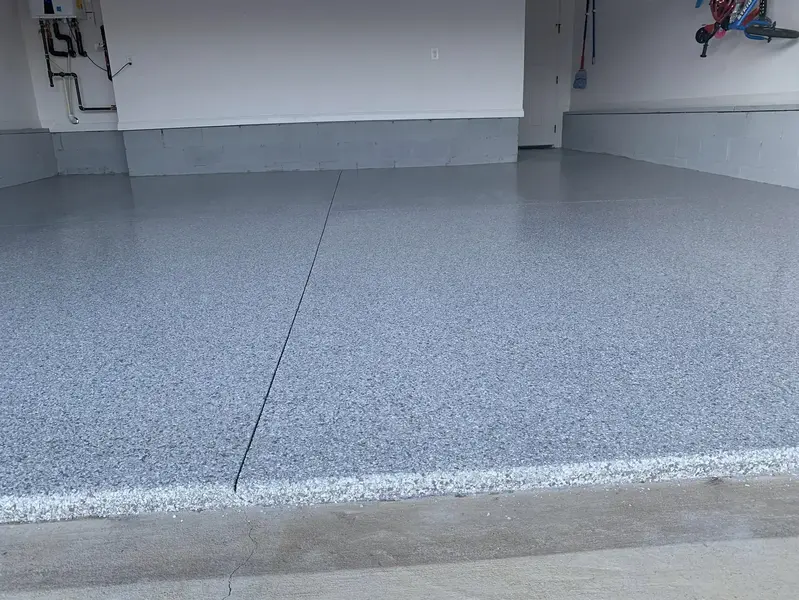

Chip and flake floor (10).min
Chip and flake floor (8).min

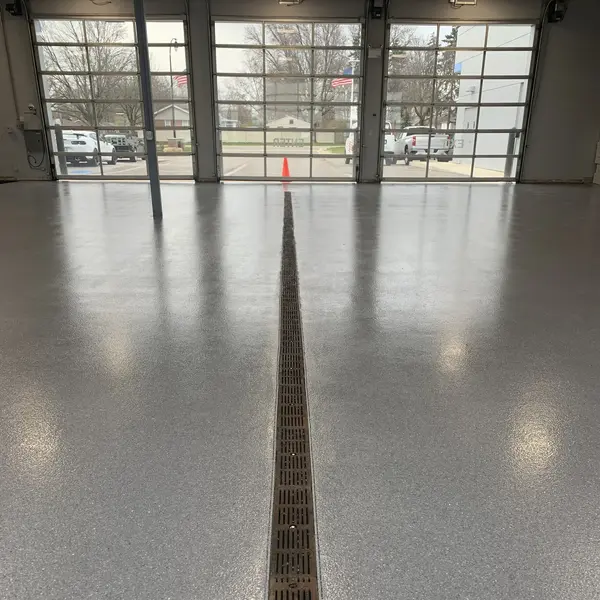

Chip and flake floor (5).min
Chip and flake floor (34).min

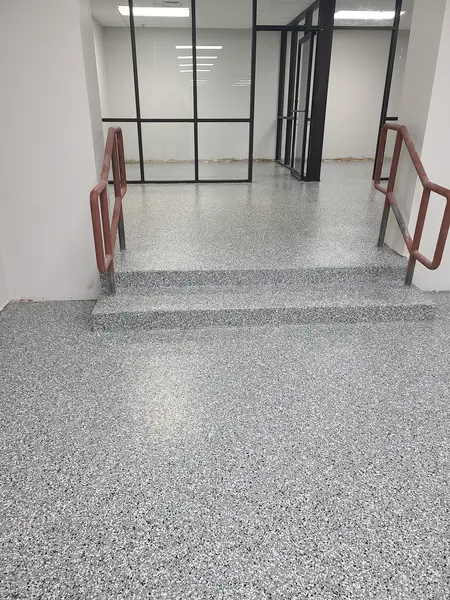

Chip and flake floor (39).min

Epoxy & Polyaspartic Flake Flooring

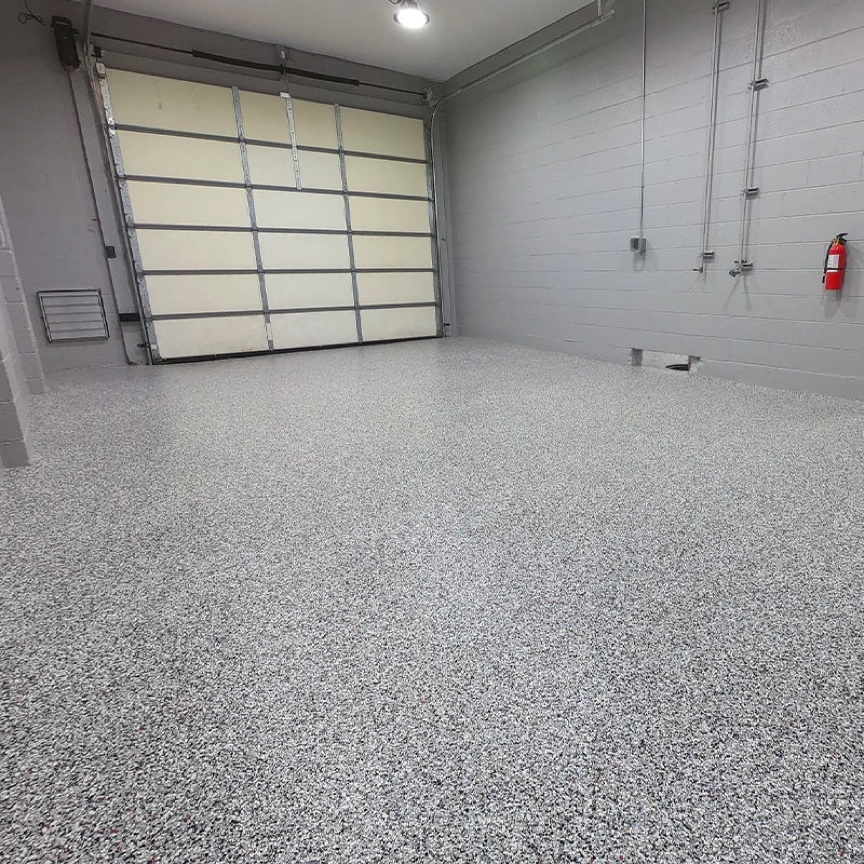

Resinwerks™ flake flooring systems combine high-quality blended vinyl flakes with epoxy and polyaspartic coatings to create a highly functional and aesthetically pleasing floors. Ideal for all types of environments, epoxy flake floor coatings offer a custom finish that can be designed to suit any space. Available with either a lightly textured or completely smooth surface, seamless flake applications are easy to clean while offering excellent resistance to abrasion and long-term wear.

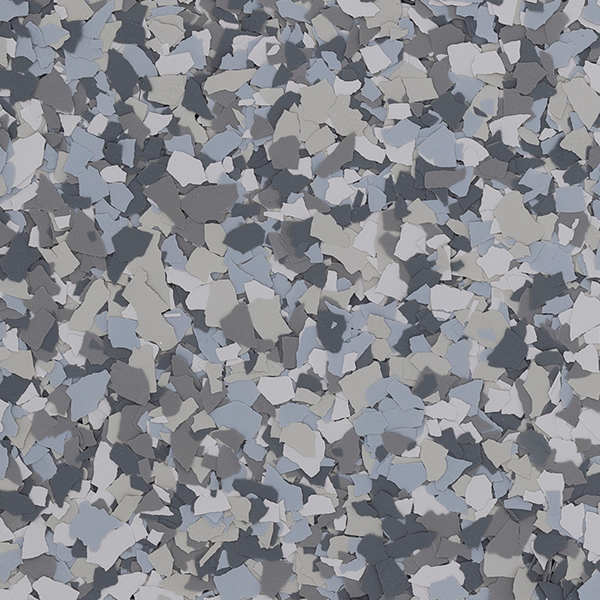

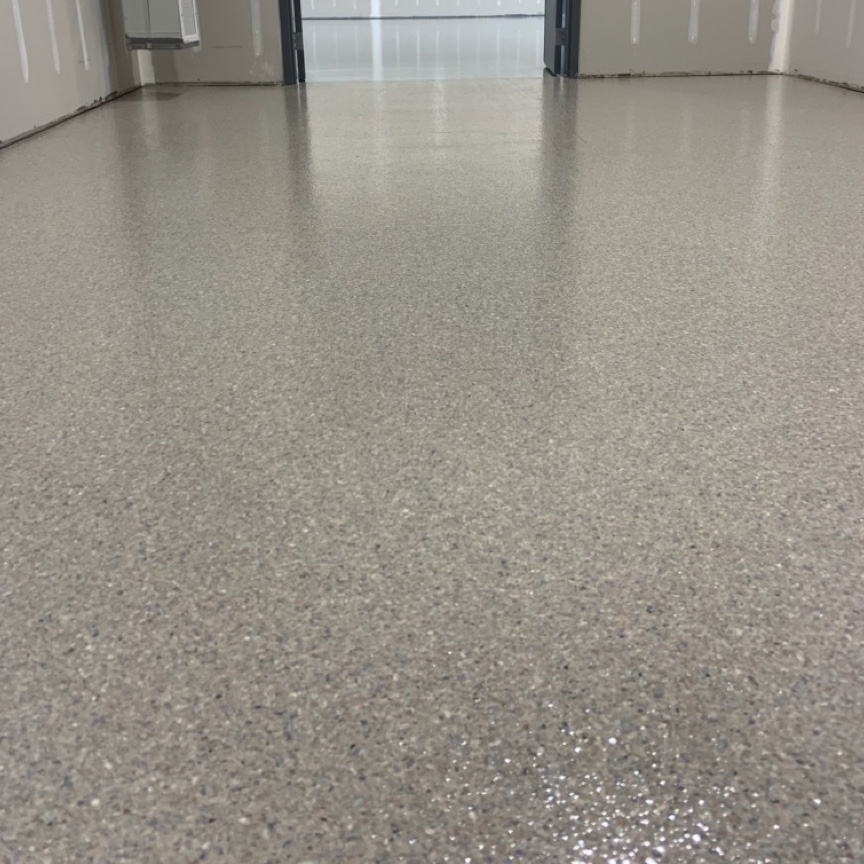

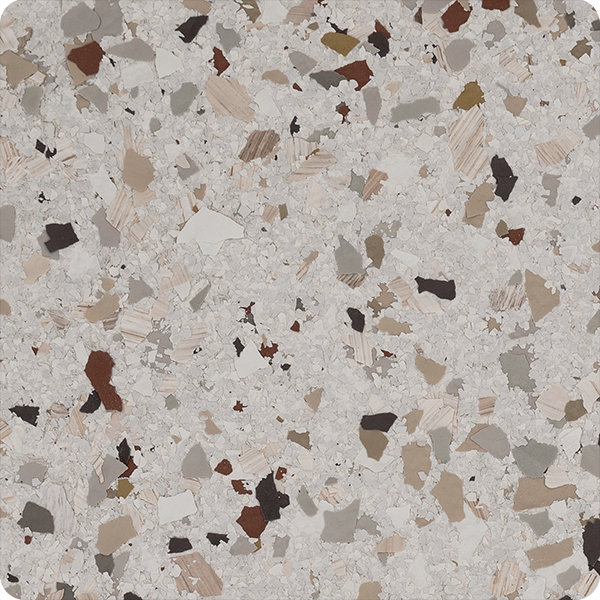

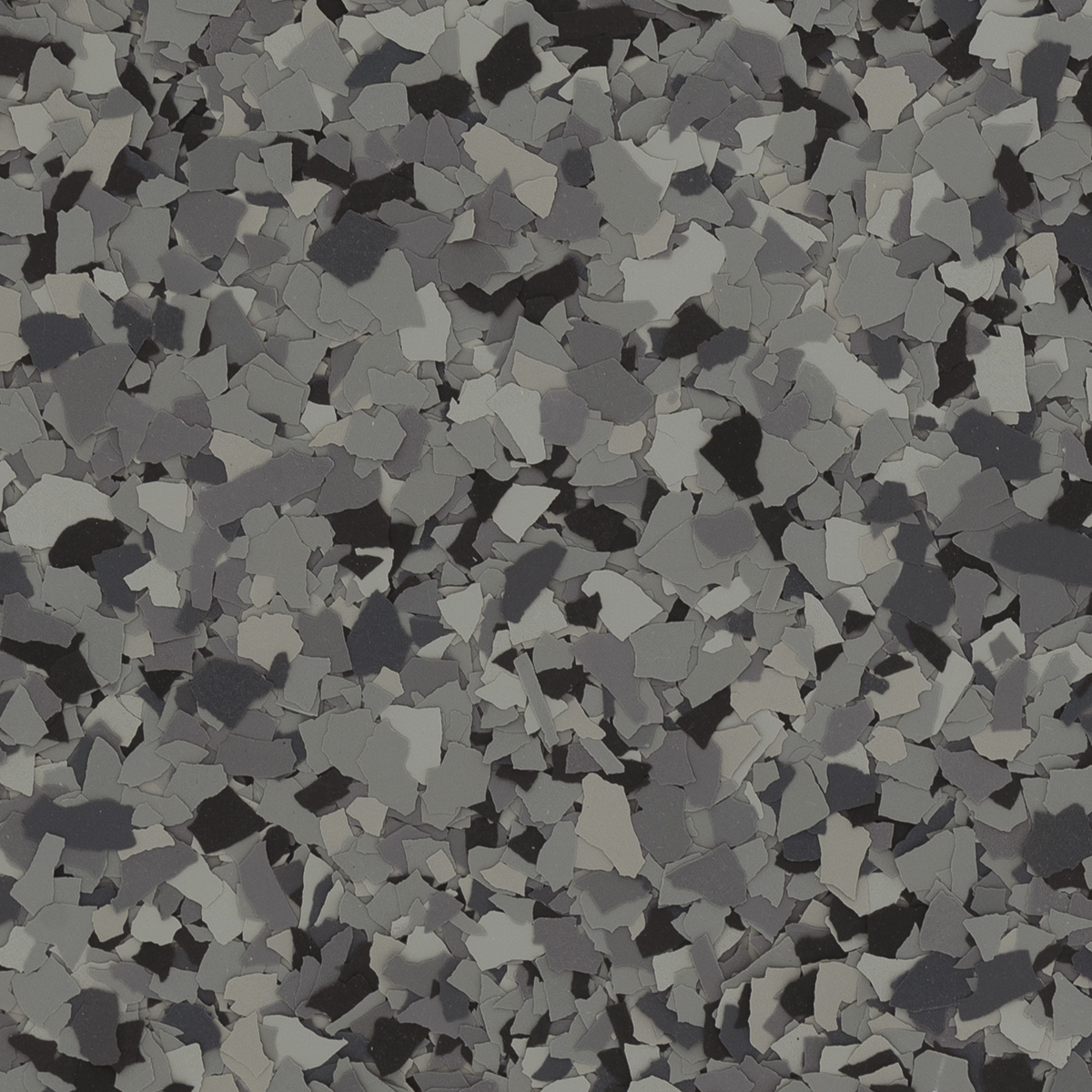

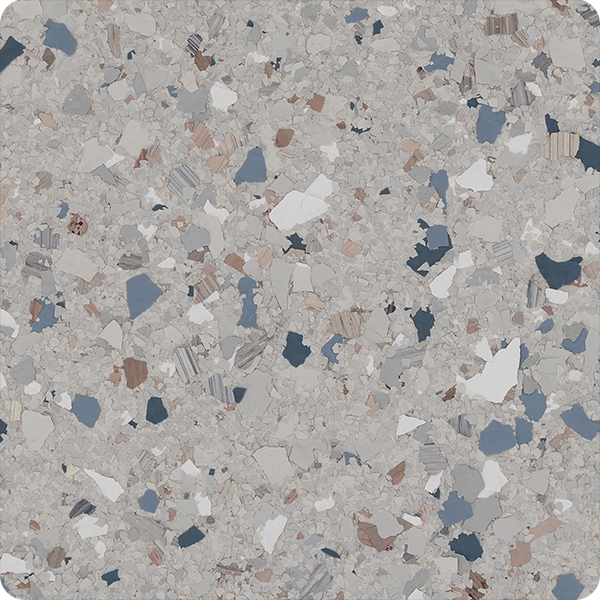

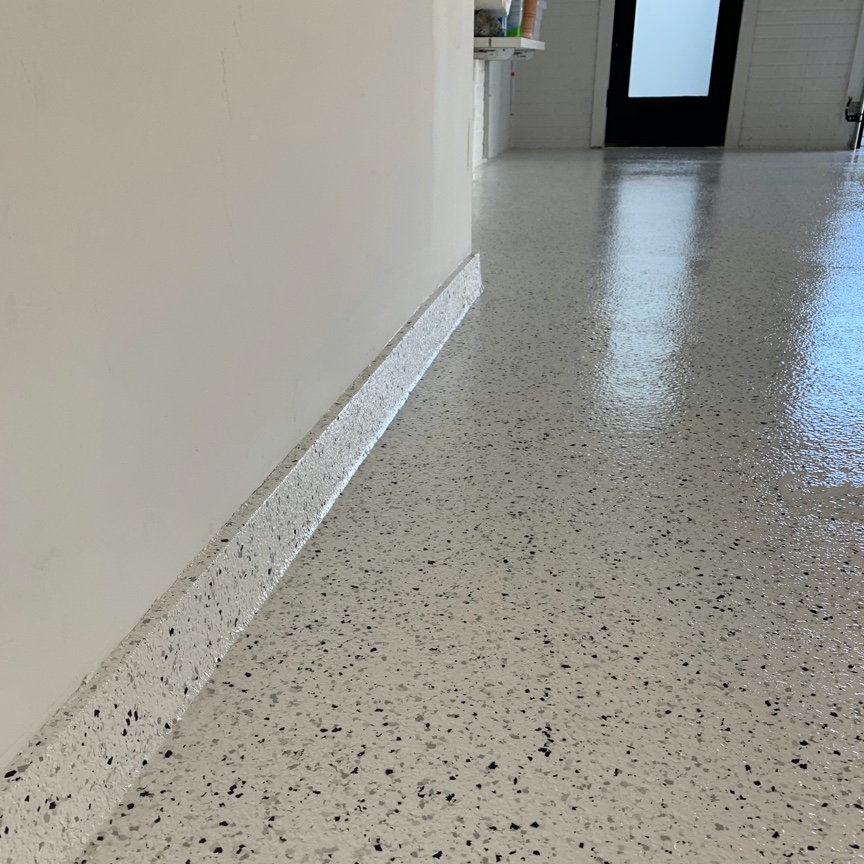

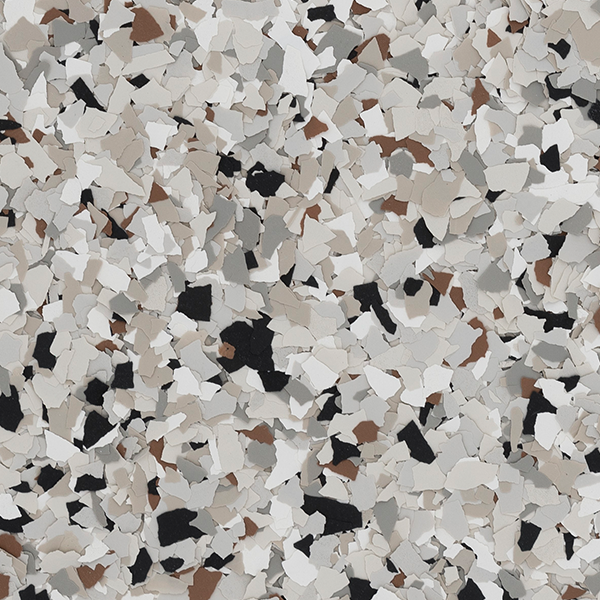

Owners can select from a variety of flake blends, including simulated terrazzo flooring finishes. This highly economical alternative provides the same look and feel of terrazzo at a fraction of the cost. Simulated terrazzo systems incorporate specialized flake blends with an additional resin matrix comprised of our LevelGuard™ EP 100% solids grout coat. Flake systems are often finished with our high-performance Kinetic® polyaspartic topcoat. The end result is a smooth, easily maintainable floor that performs excellent in heavy-traffic environments.




Flake System Design

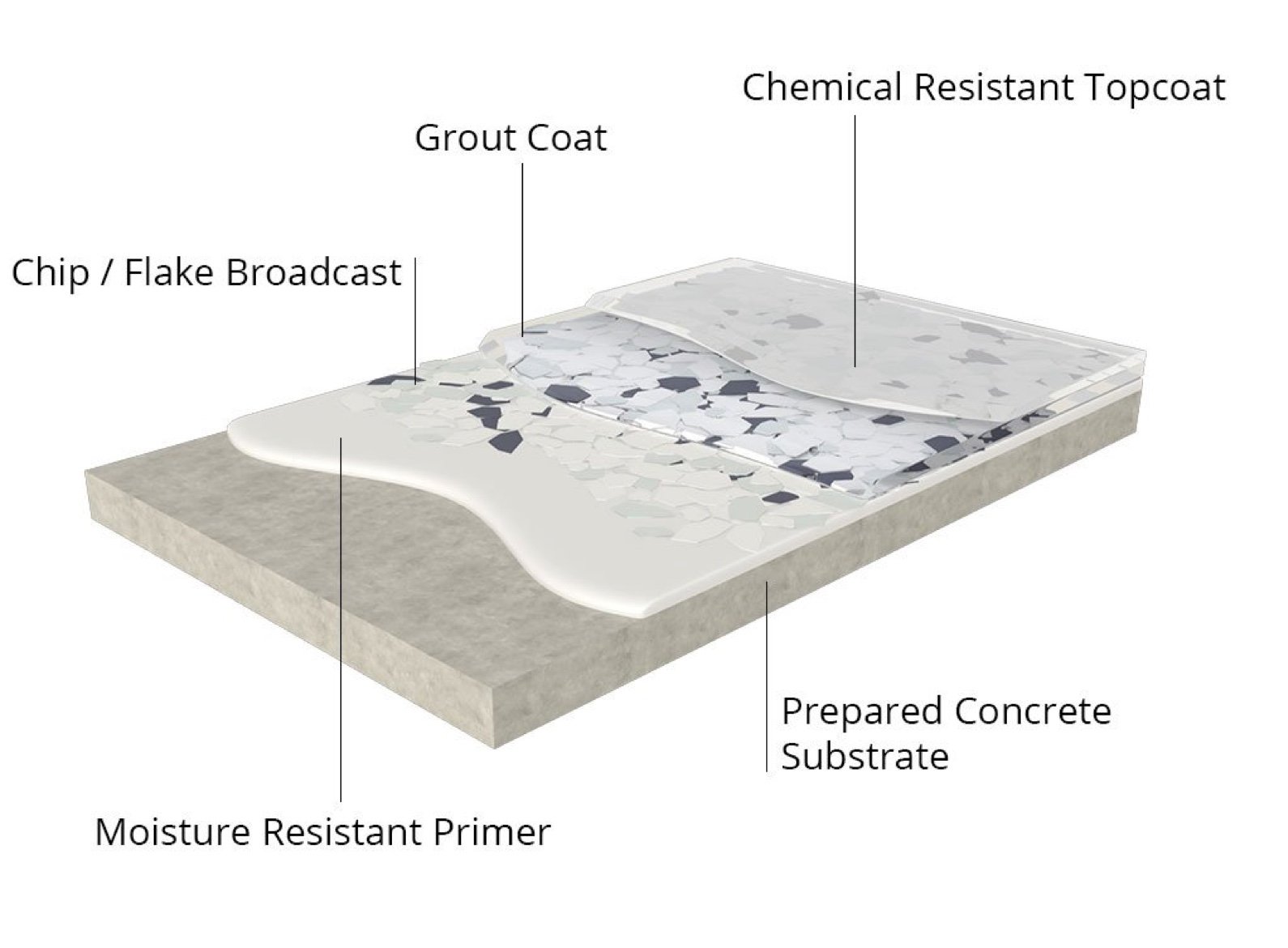

Seamless flake systems from Resinwerks can be built in a number of ways to suit both the requirements of the environment and the parameters of the installation. In general, these systems consist of a primer, vinyl flake broadcast, grout coat and topcoat.

Primers may consist of a variety of epoxy, polyurethane concrete or polyaspartic coating materials depending on project specific requirements. These products may be substituted to account for circumstances such as higher moisture vapor transmission rates in the concrete, existing substrate condition and project return to service requirements.

Grout coats and topcoats may be modified to allow for additional or less texture depending on the owner or specifier's preference. In addition, topcoats may also incorporate added levels of traction and have the capability to provide either a gloss, satin or matte finish.

Seamless Flake - General 3-Part Specification

Use this generalized Seamless Flake 3-Part Specification to build a custom Resinwerks Seamless Flake System. Please consult a Resinwerks technical representative for assistance.

small-download-icon Seamless Flake System - General 3-Part Specification

epoxy resin floor
20230426_140833-01

EPX-F

A seamless decorative flake epoxy broadcast system designed for light-to medium duty environments. It incorporates a pigmented primer/broadcast coat, followed by a full decorative flake broadcast. The system is grout and top-coated with a single coat of either high-solids or 85% solids polyaspartic. Available in a gloss or satin finish with standard Resinwerks flake blends. Custom blends, including hybrid stone blends are also available.

Get a Quote
System Data Sheet System Specification
20230426_140819-01

EPS-F-HD

A seamless decorative flake epoxy broadcast system designed for heavy-traffic settings. It incorporates a pigmented primer and broadcast coat, followed by a full decorative flake broadcast. The system is grouted with a high-solids water-clear grout coat and finished with a high-traffic urethane for added abrasion & chemical resistance. Available in a semi-gloss or satin finish with standard Resinwerks flake blends. Custom blends, including hybrid stone blends are also available.

Get a Quote
System Data Sheet System Specification
20230426_140854-01

KTX-F

A decorative flake epoxy broadcast system designed for rapid return to service & cold-climate applications. It incorporates a range of fast-cure primer options including rapid-setting epoxies as well as polyaspartic coating options. The system is then broadcast to rejection and then top-coated with one of three clear high polyaspartic topcoat options. This UV-stable seamless decorative flake system exhibits fantastic long-term substrate adhesion and is ideal for a range of applications requiring a minimal installation downtime.

Get a Quote
System Data Sheet System Specification
thumb_SLF

Bio-Cem SLF

A hybrid Urethane Cement / Decorative Flake broadcast system engineered for applications requiring a self-leveling base coat. This system incorporates a 1/8” polyurethane concrete slurry primer, followed by a decorative flake broadcast. The SLF system is grouted with a water-clear and chemical resistant 100% solids epoxy and finished with an aggregate fortified high-wear urethane in either a semigloss or satin finish.

Get a Quote
System Data Sheet System Specification
System Brochure Comm_seamless chip & flake PGS LOW

Seamless Flake Flooring

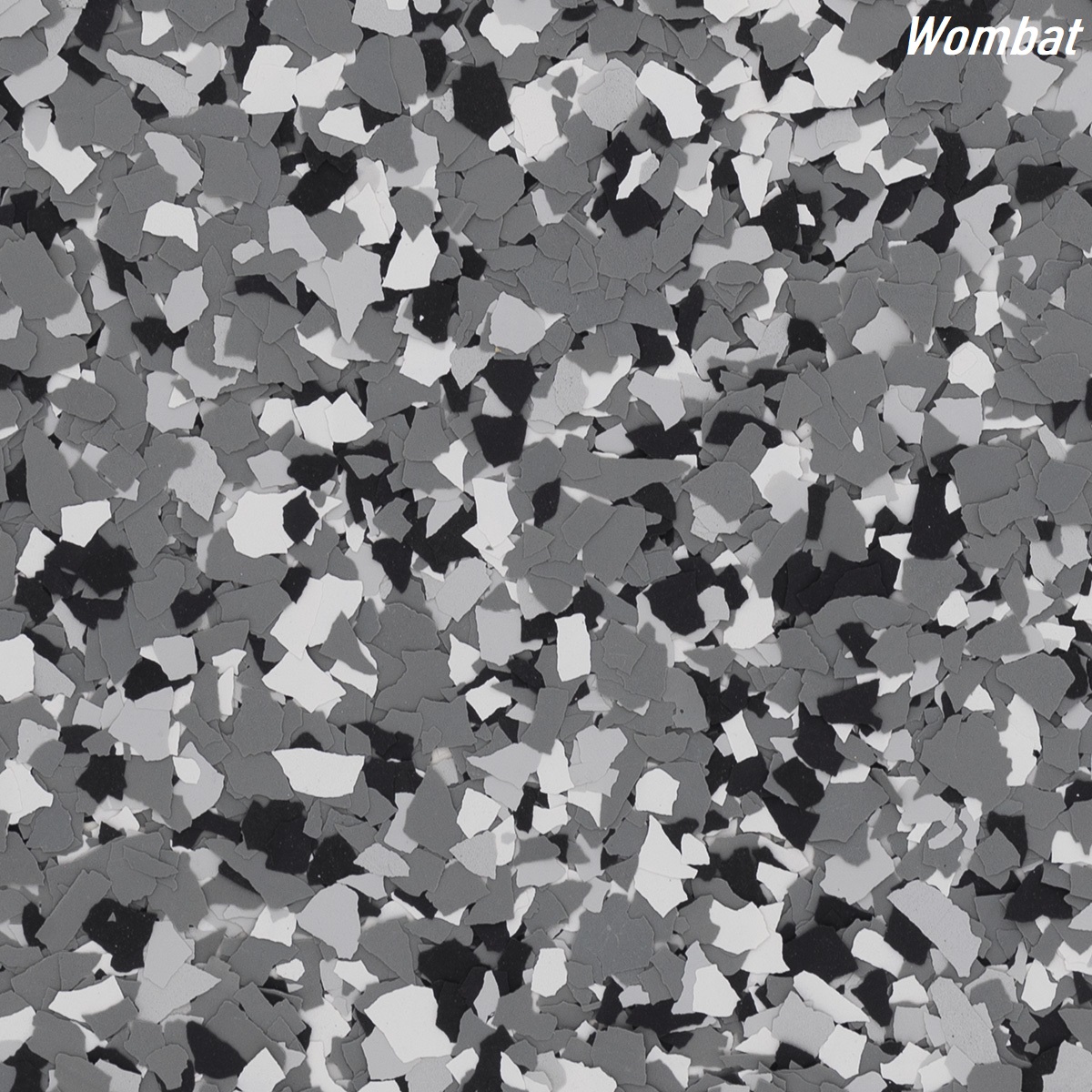

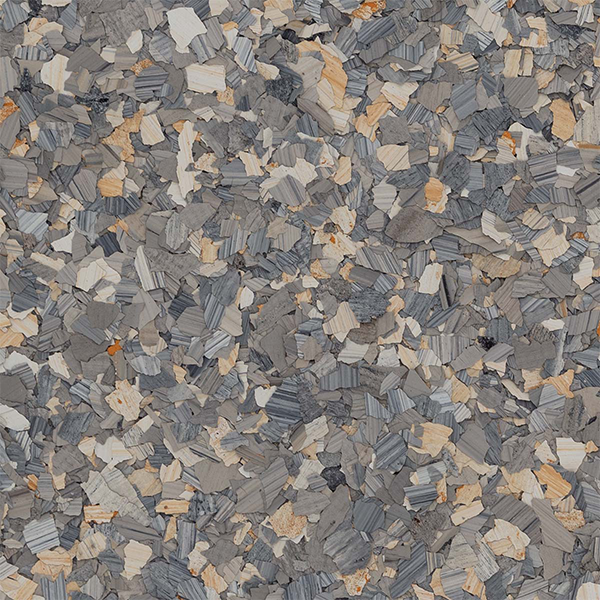

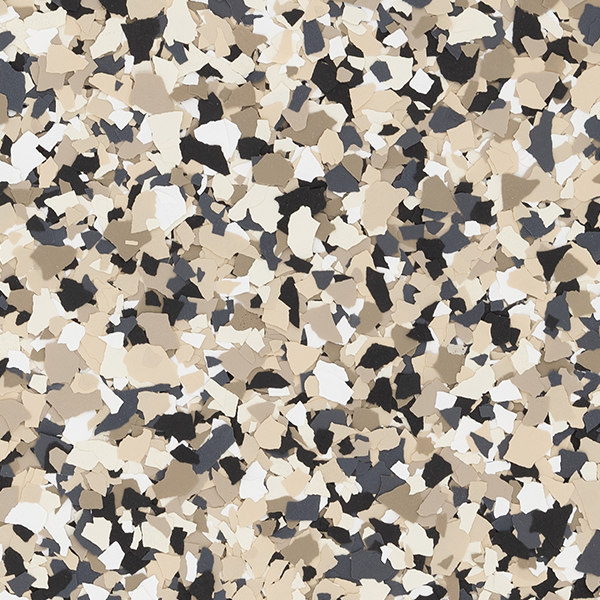

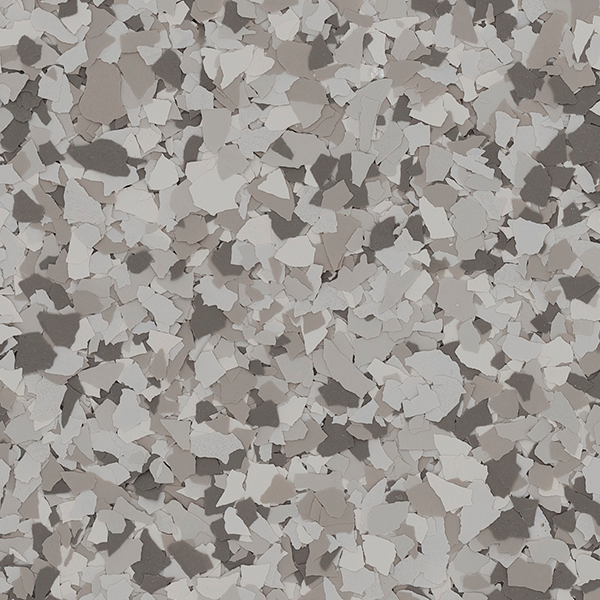

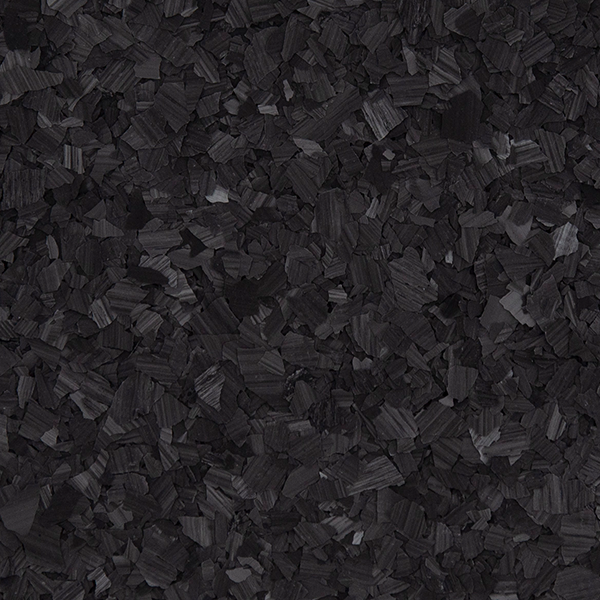

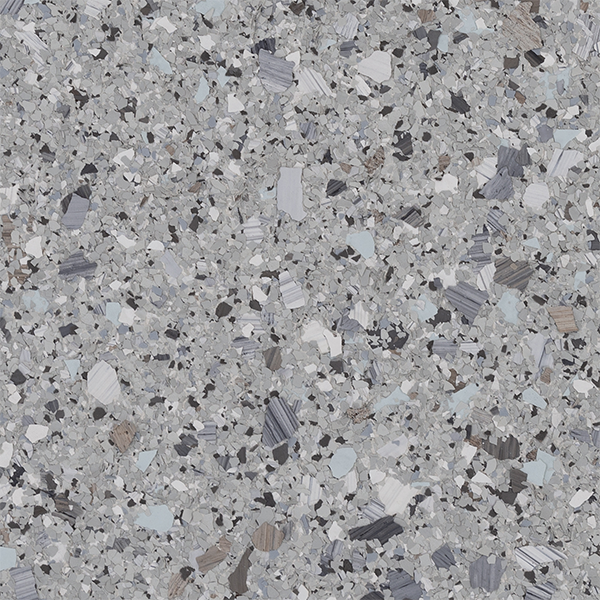

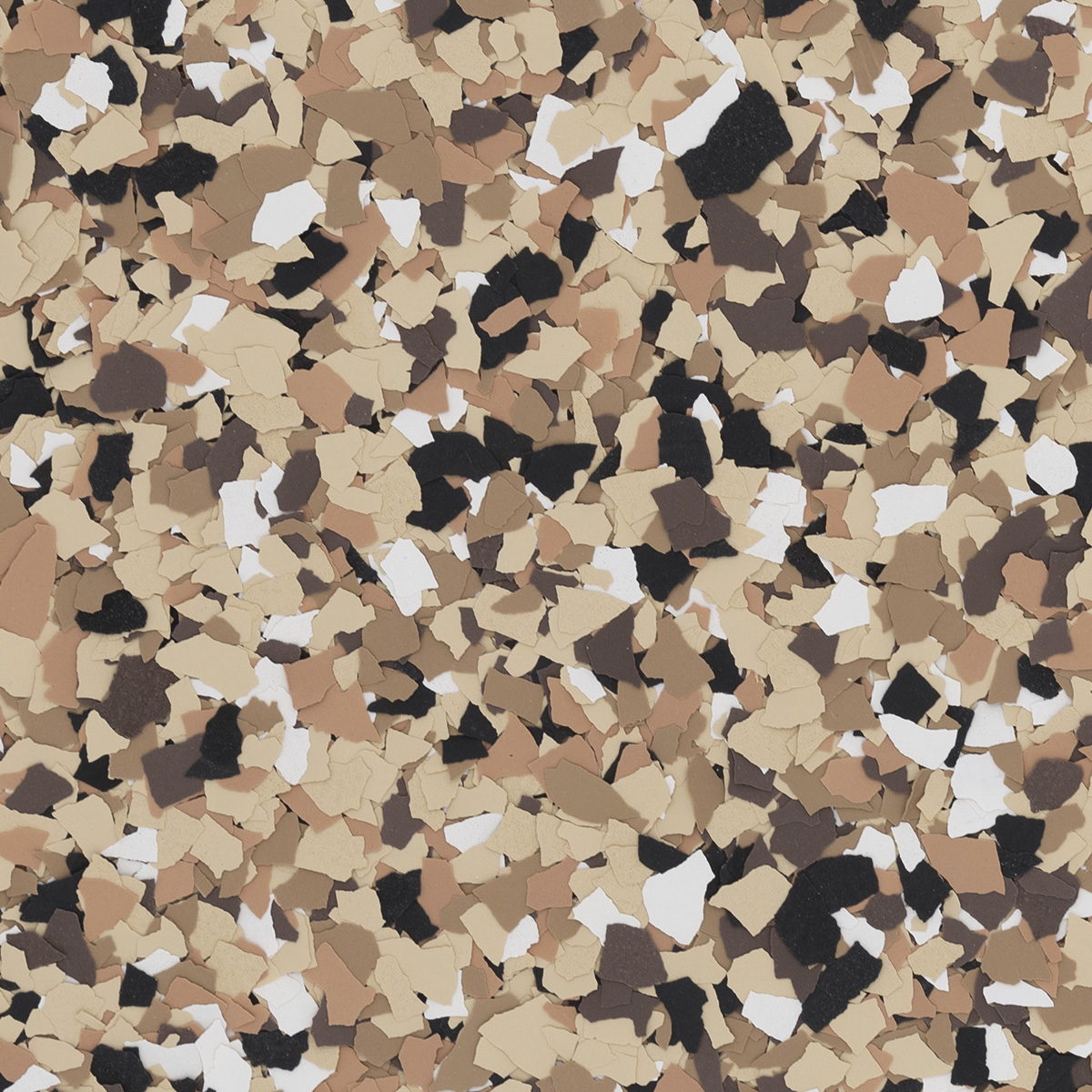

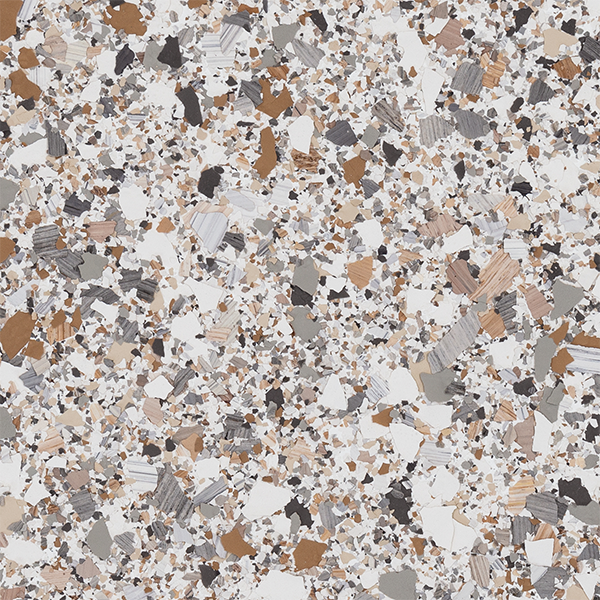

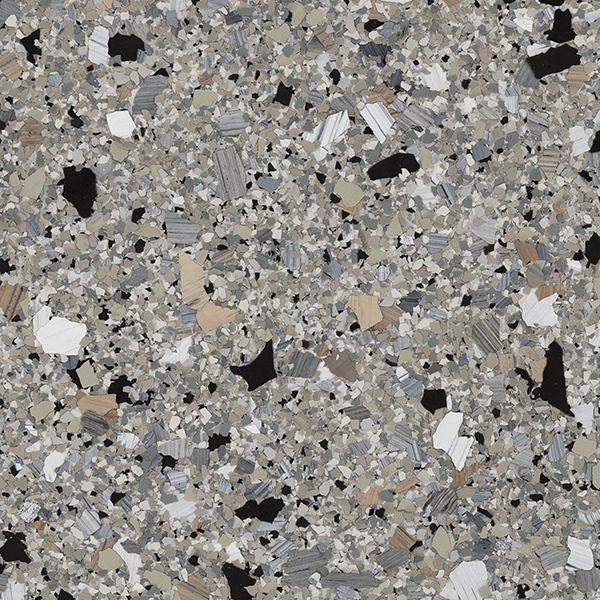

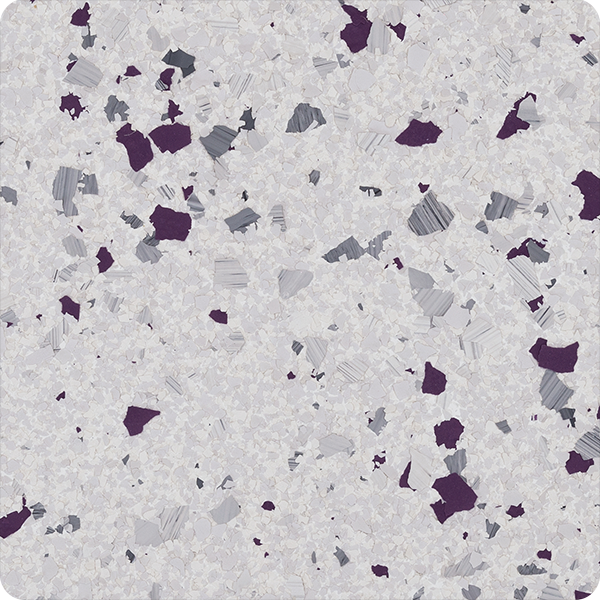

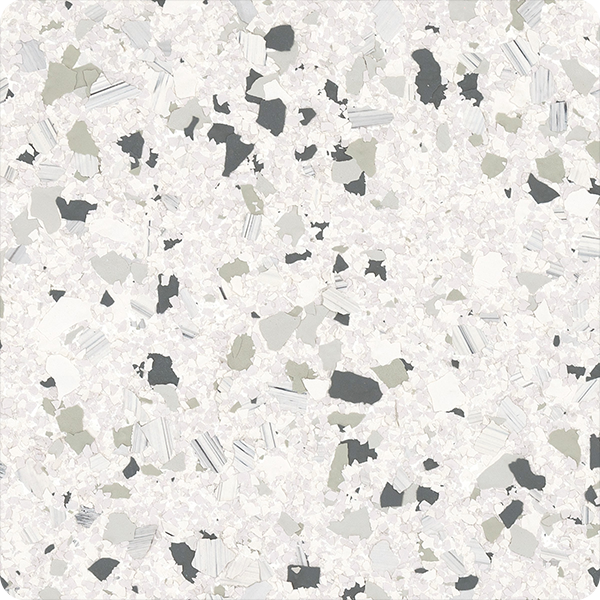

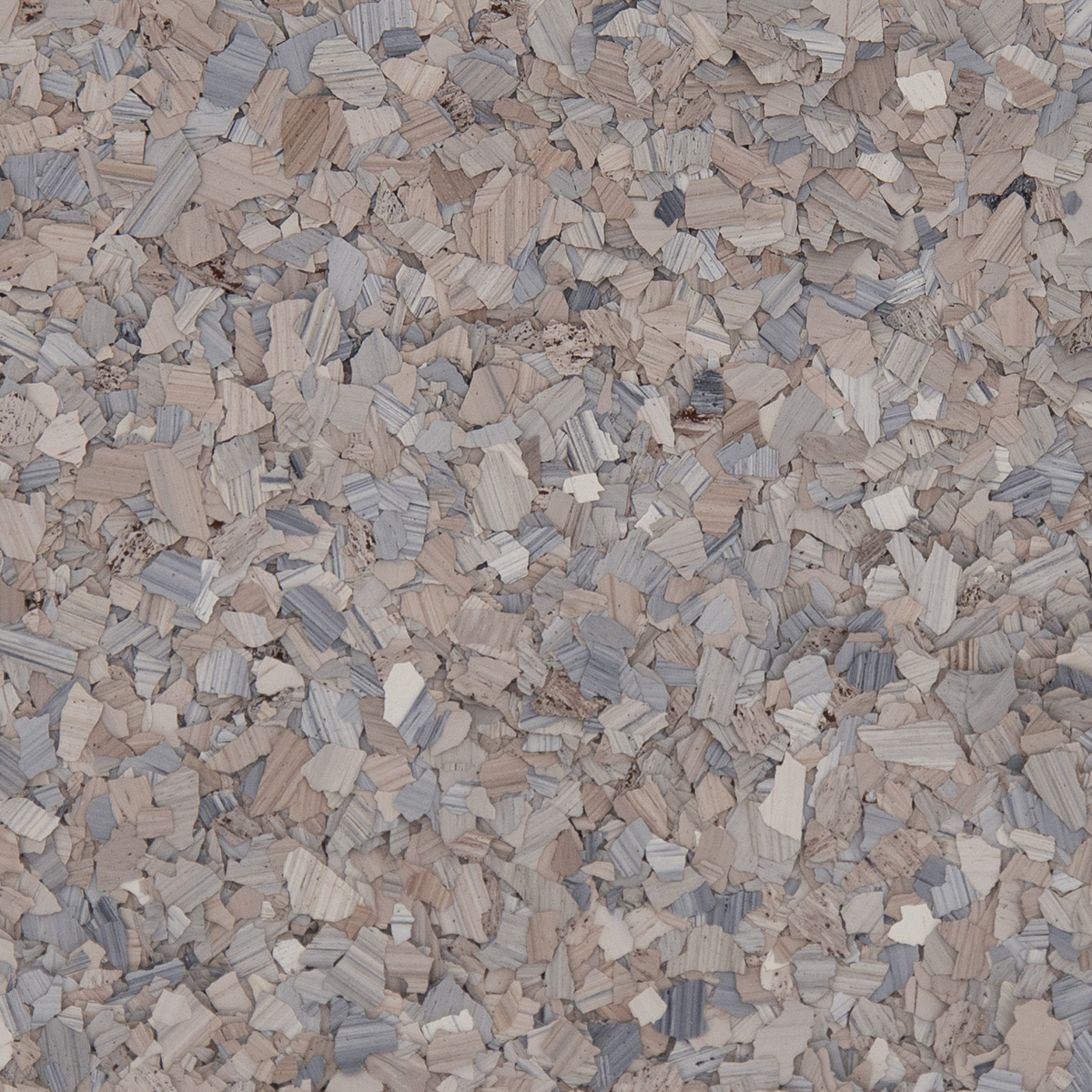

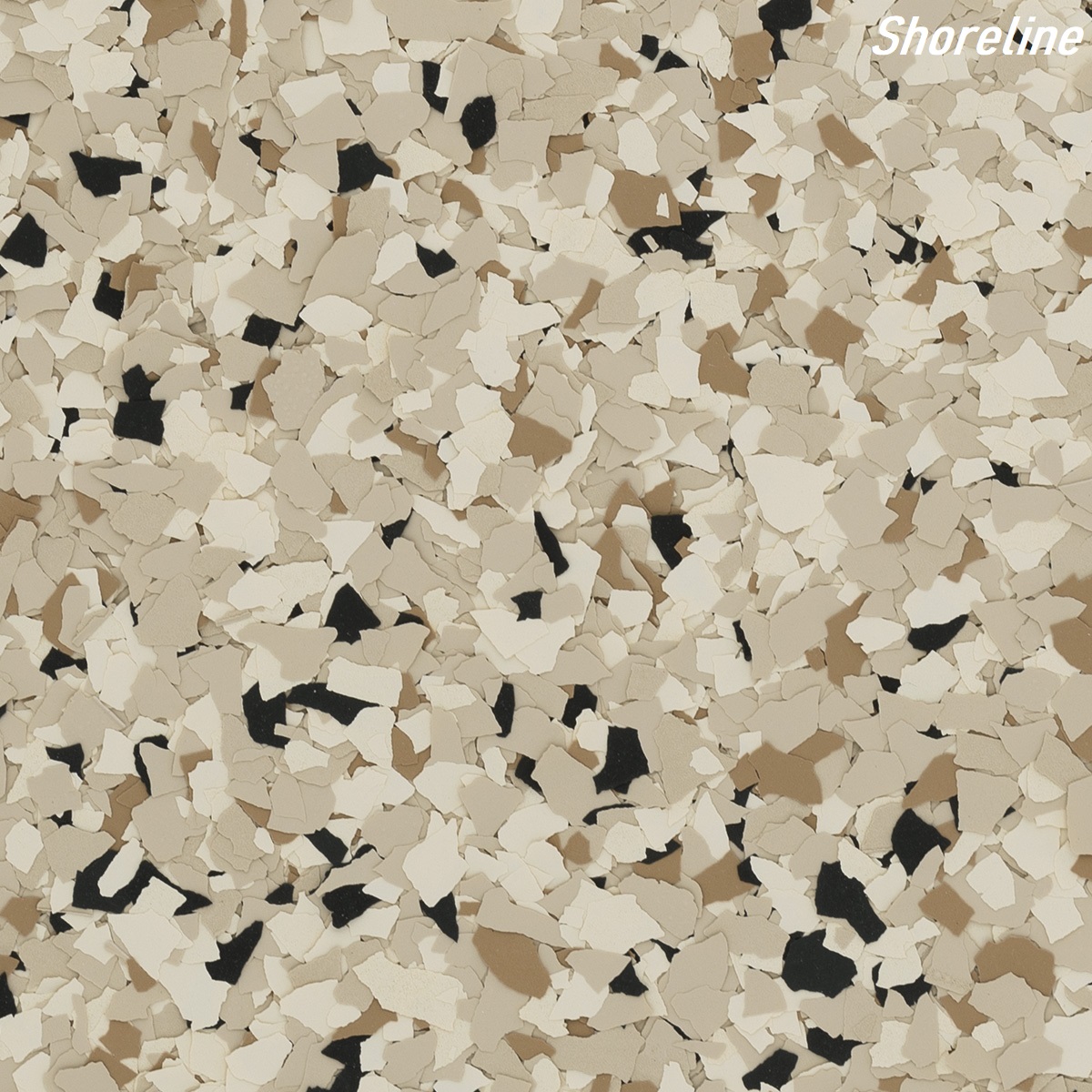

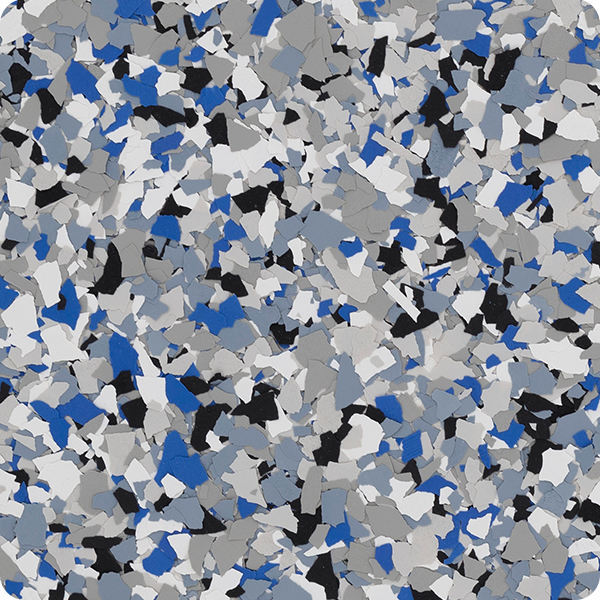

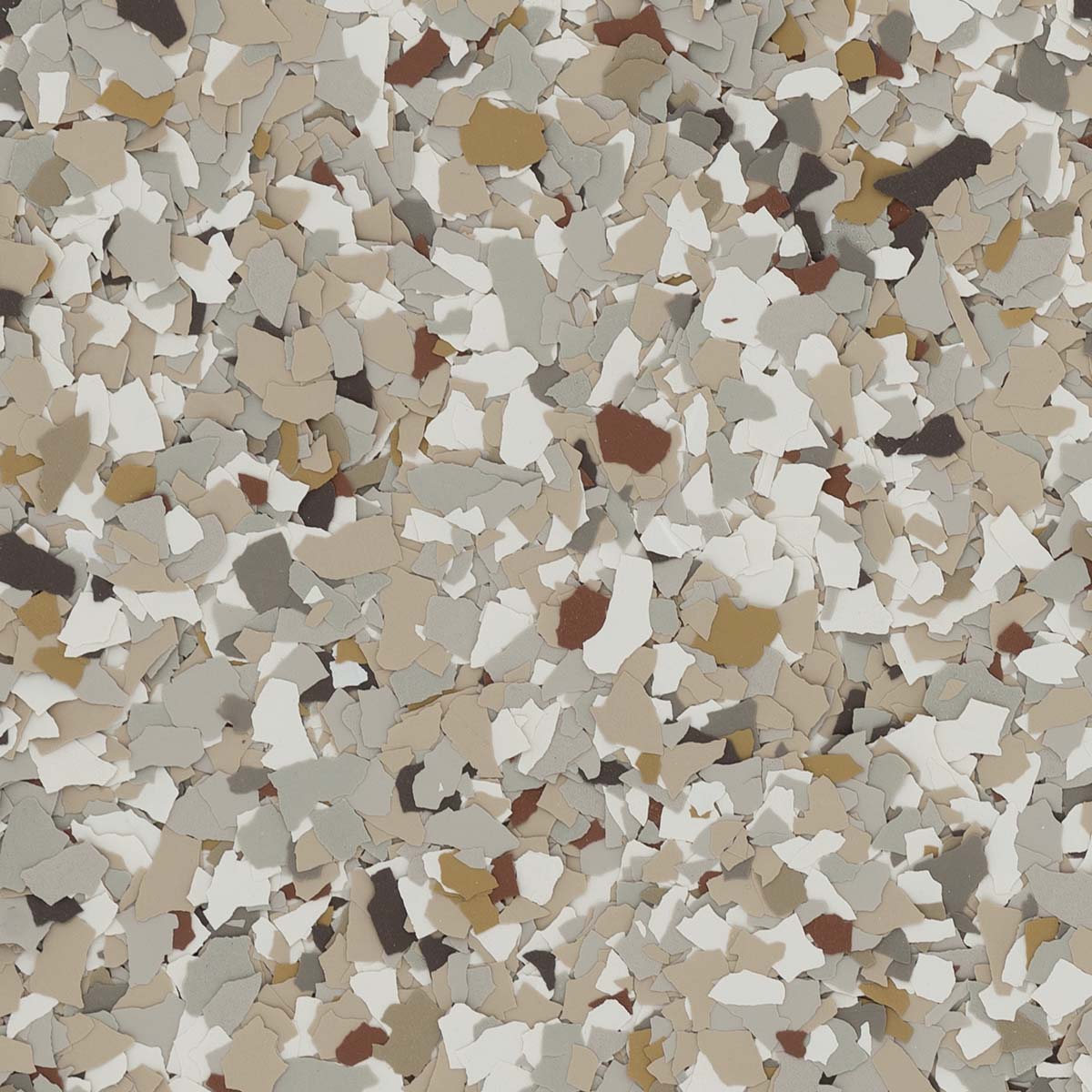

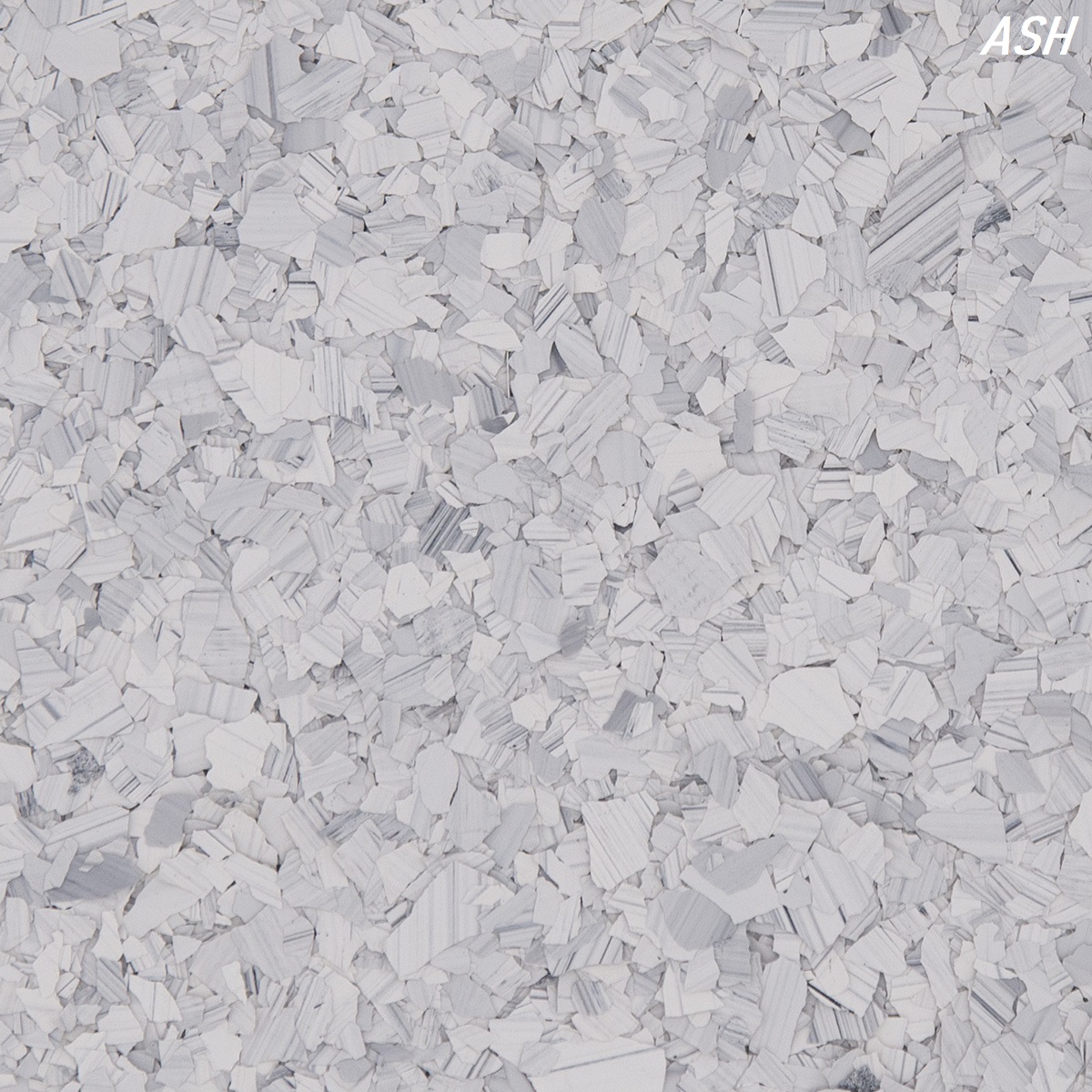

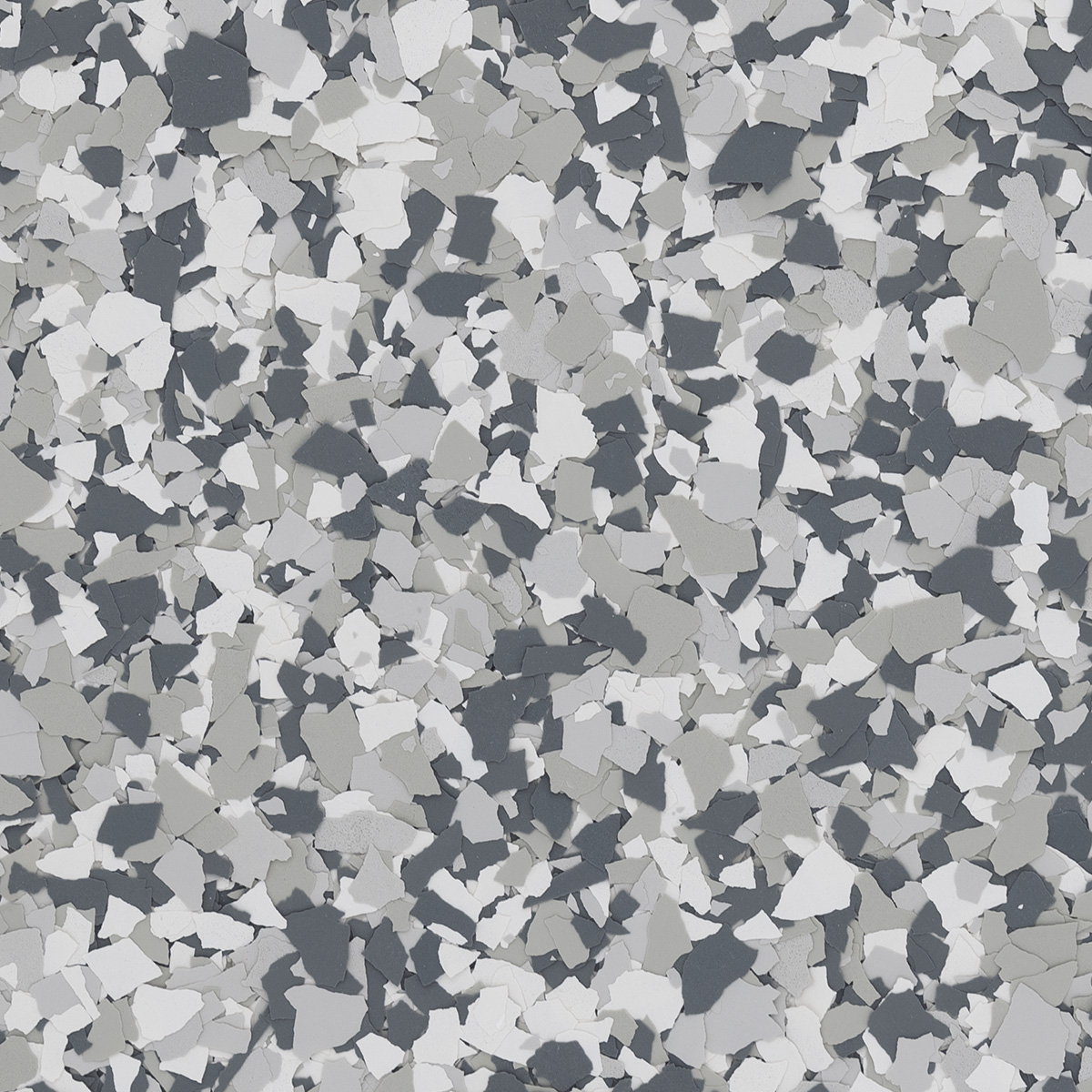

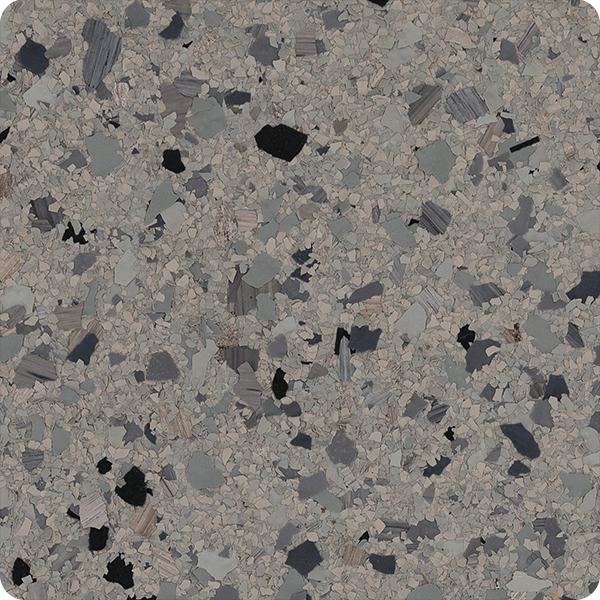

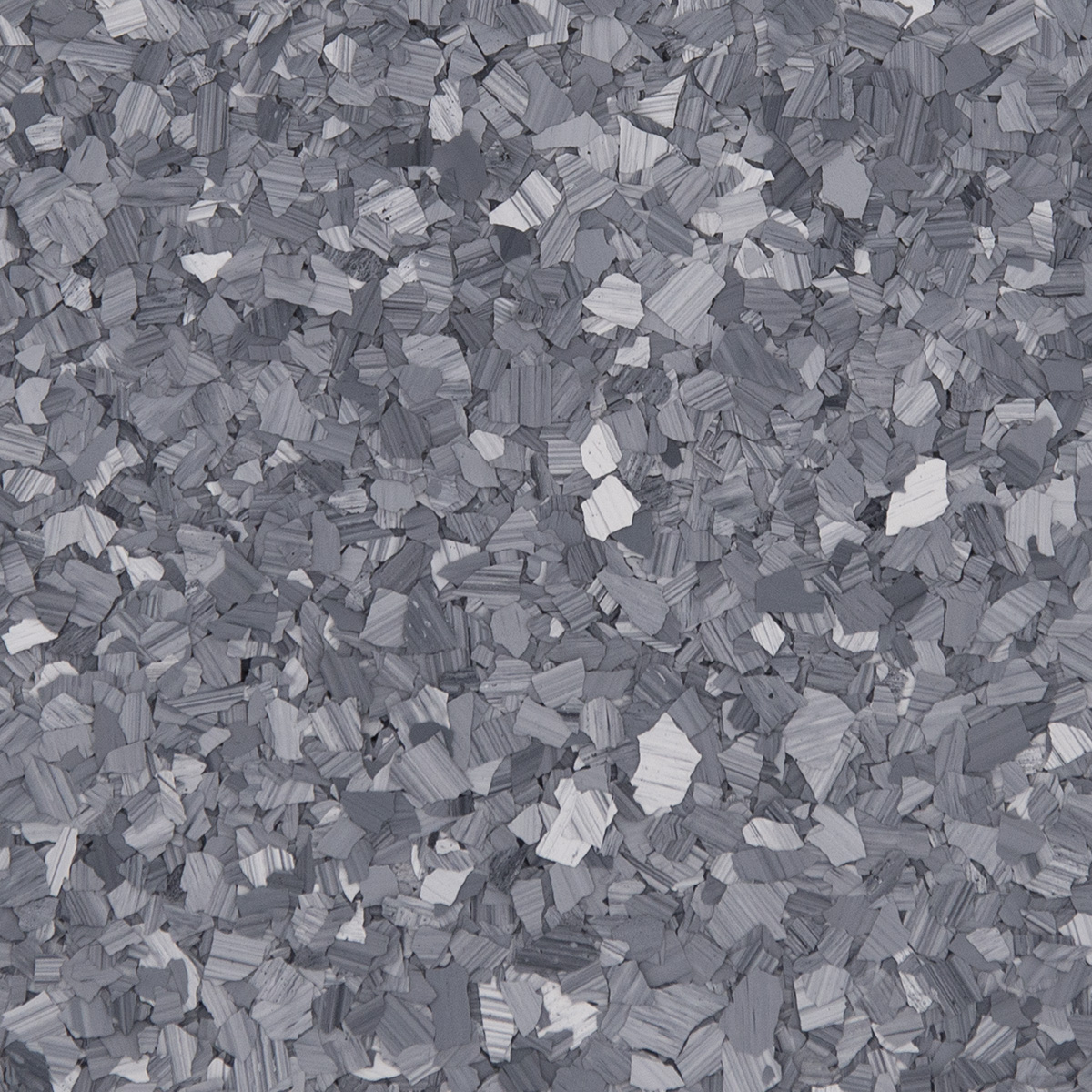

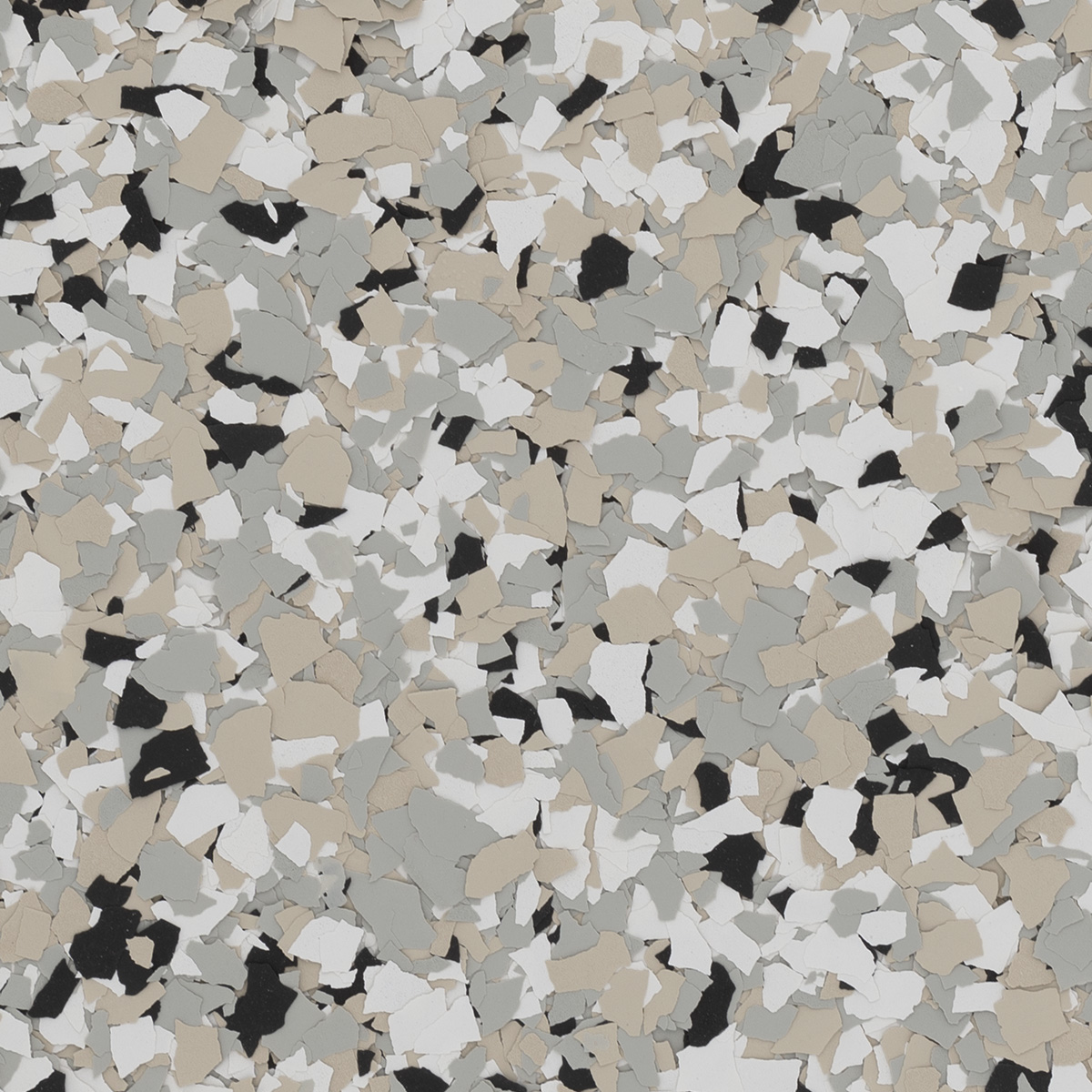

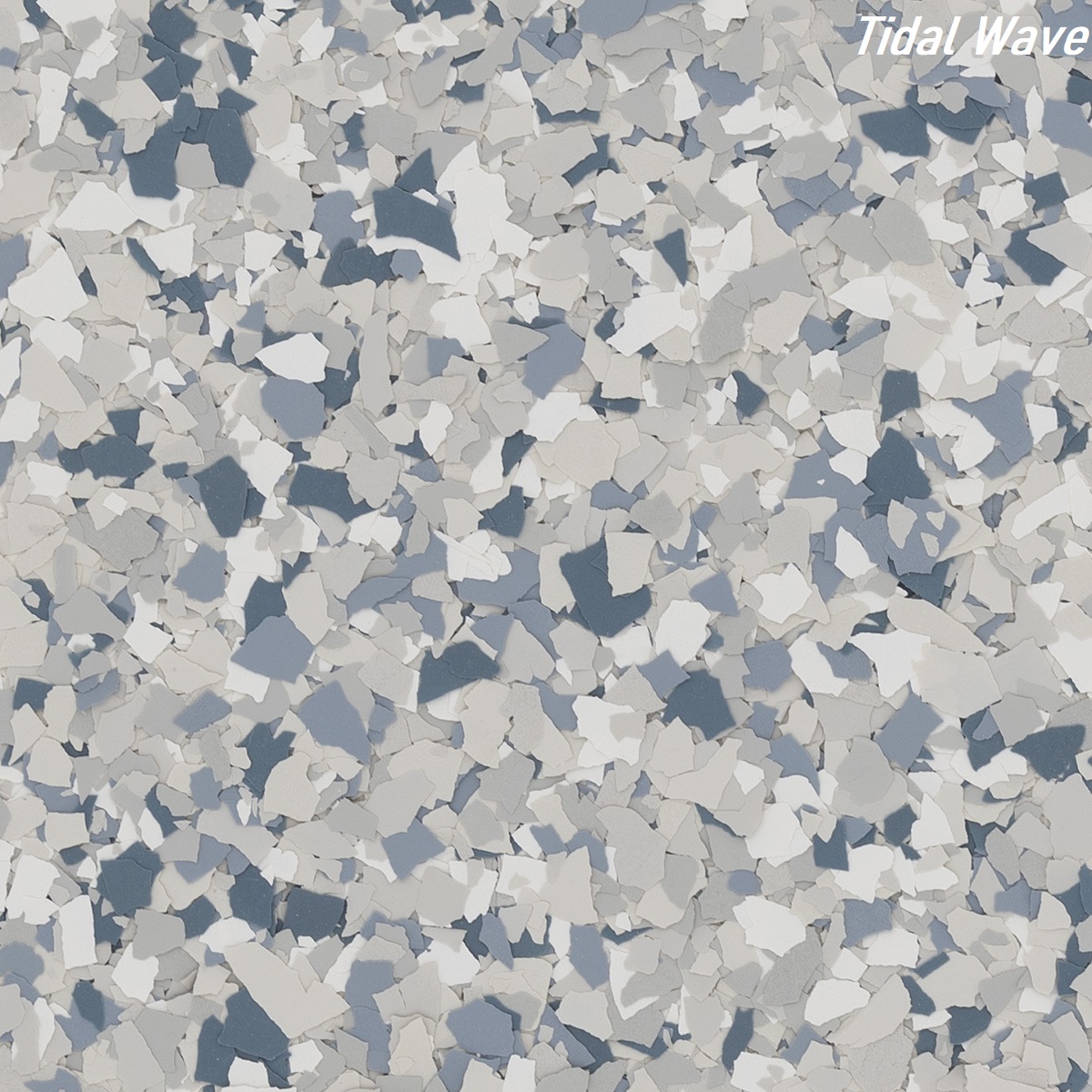

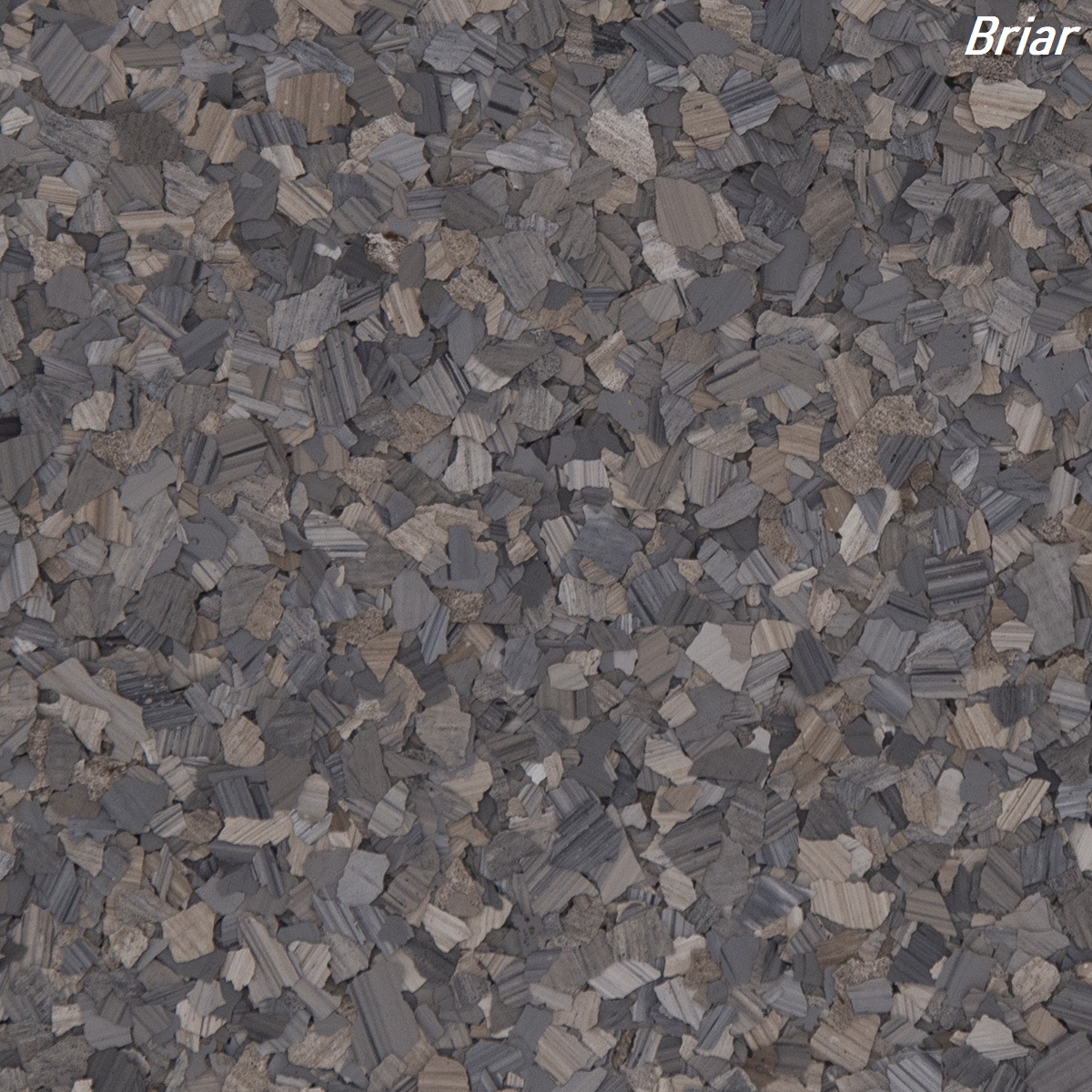

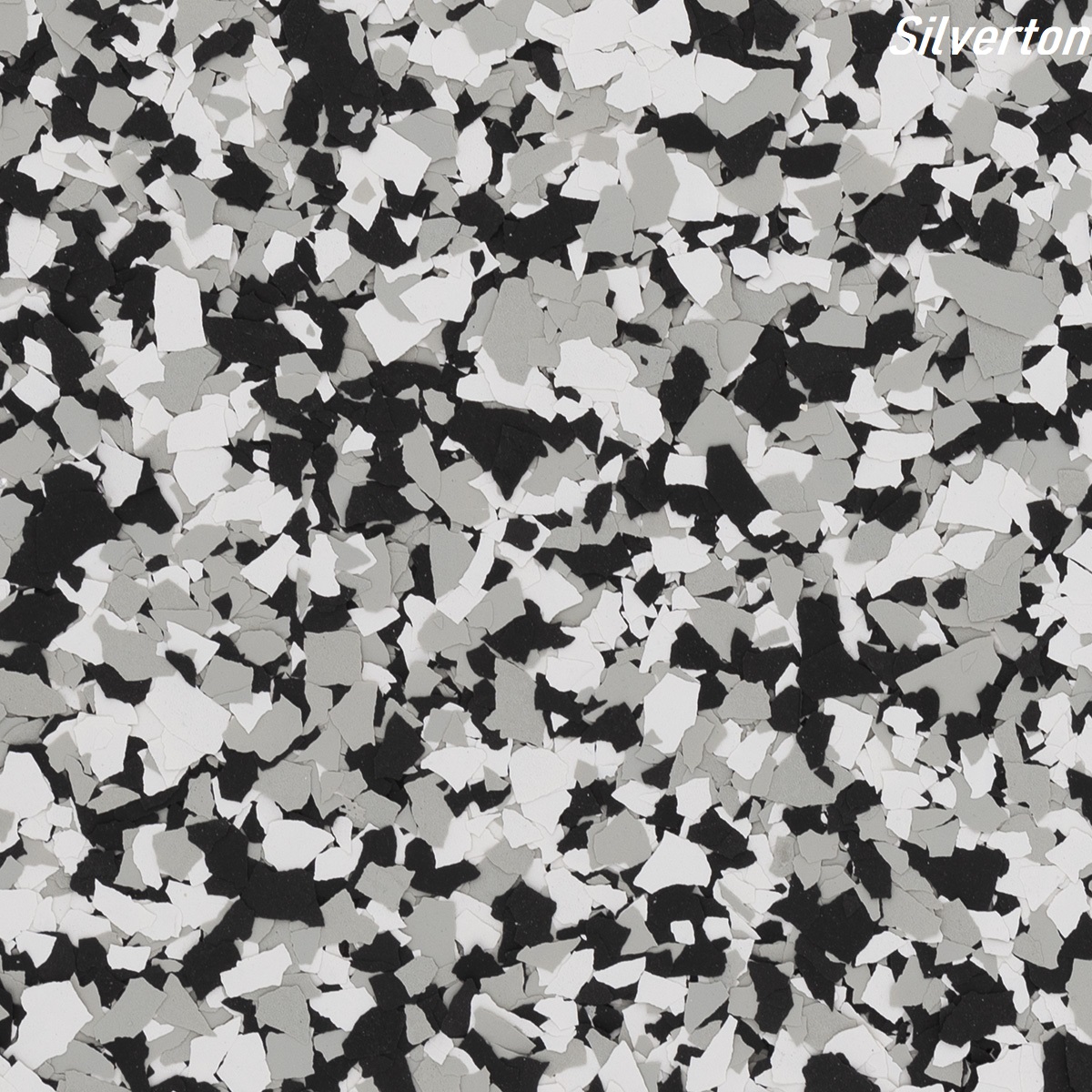

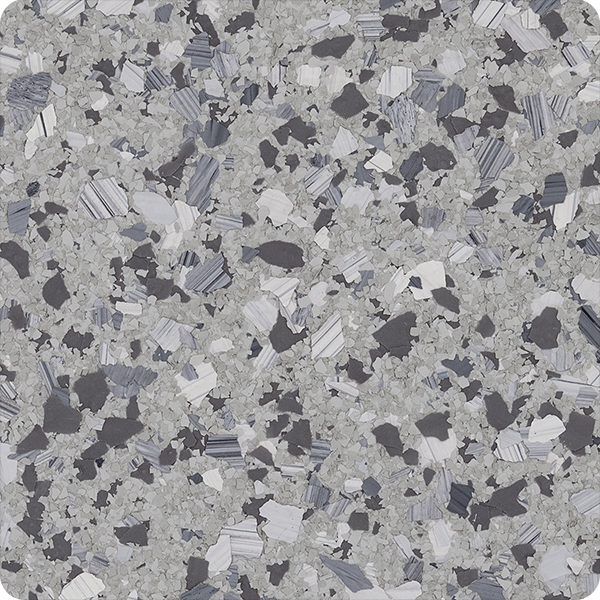

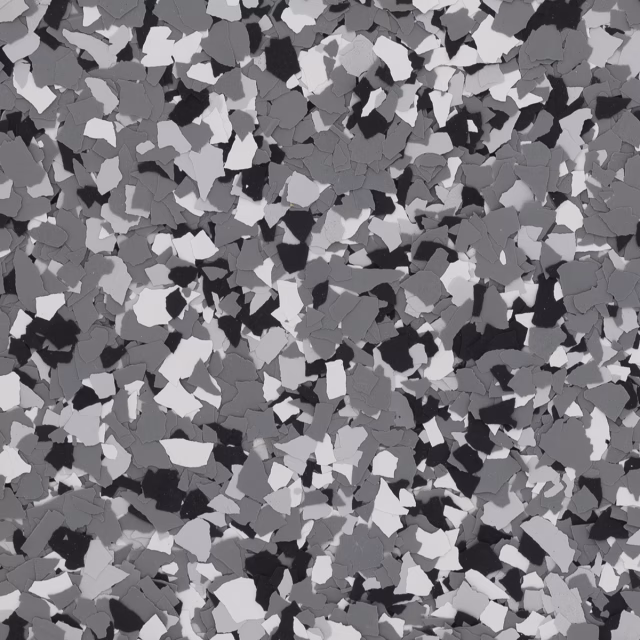

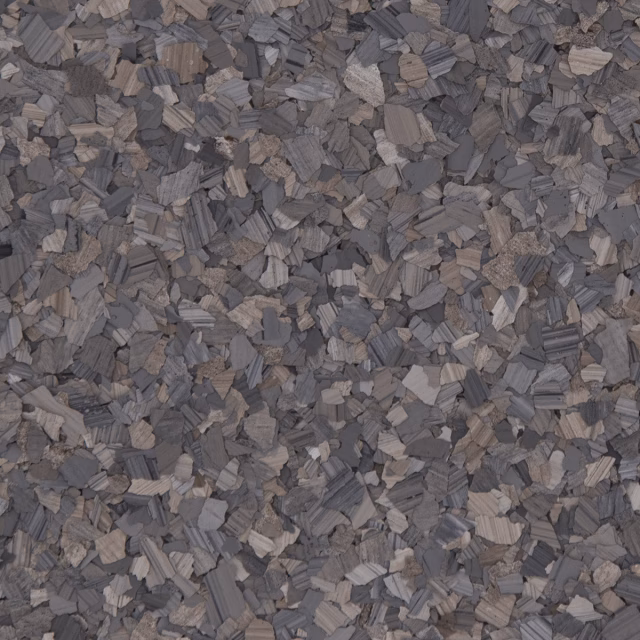

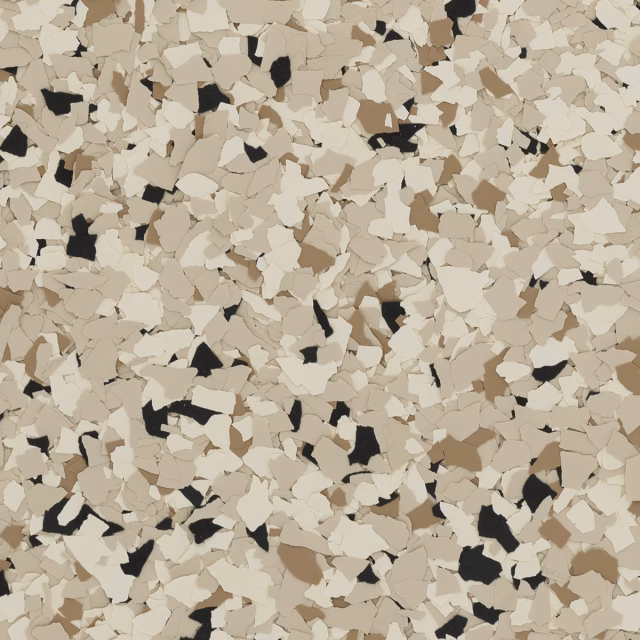

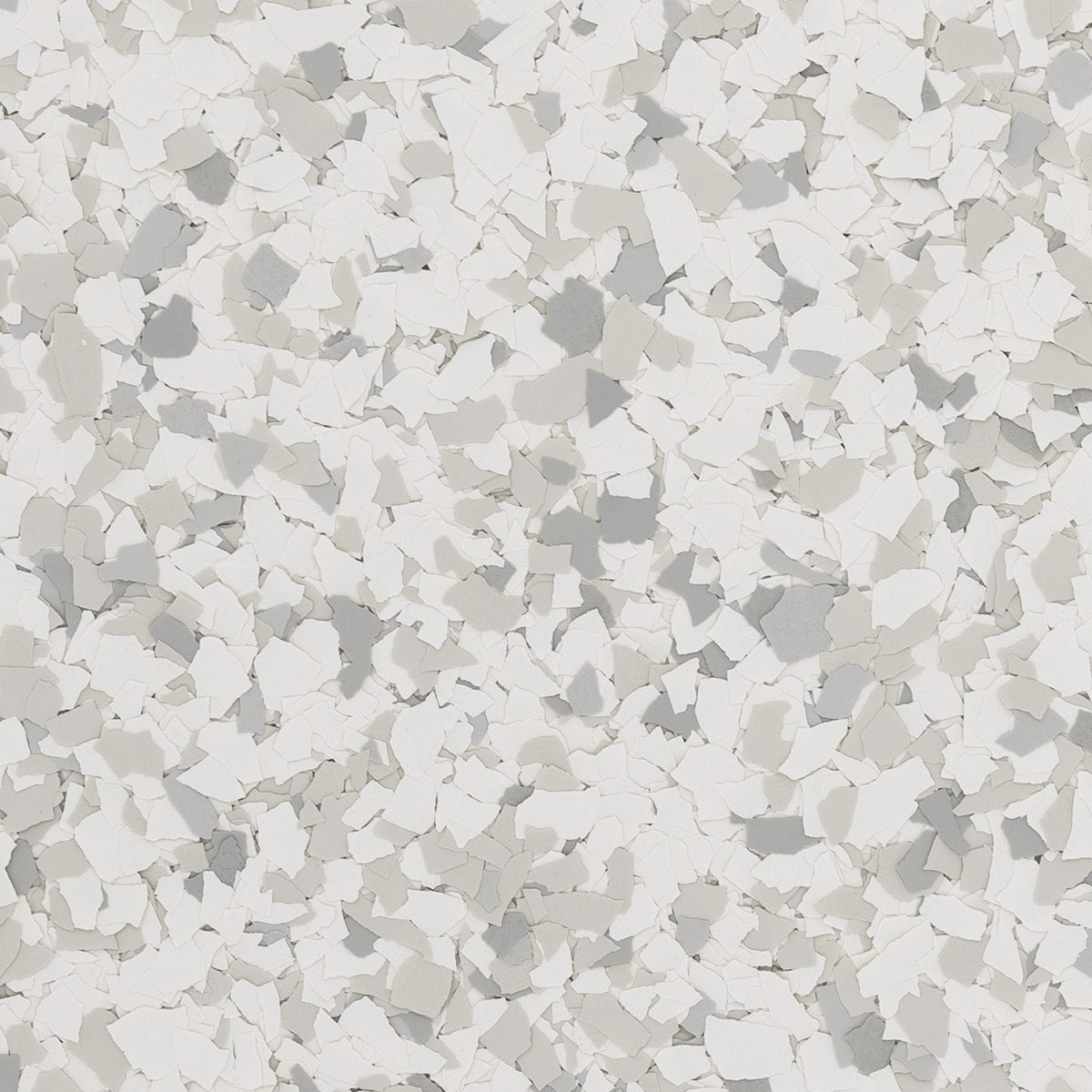

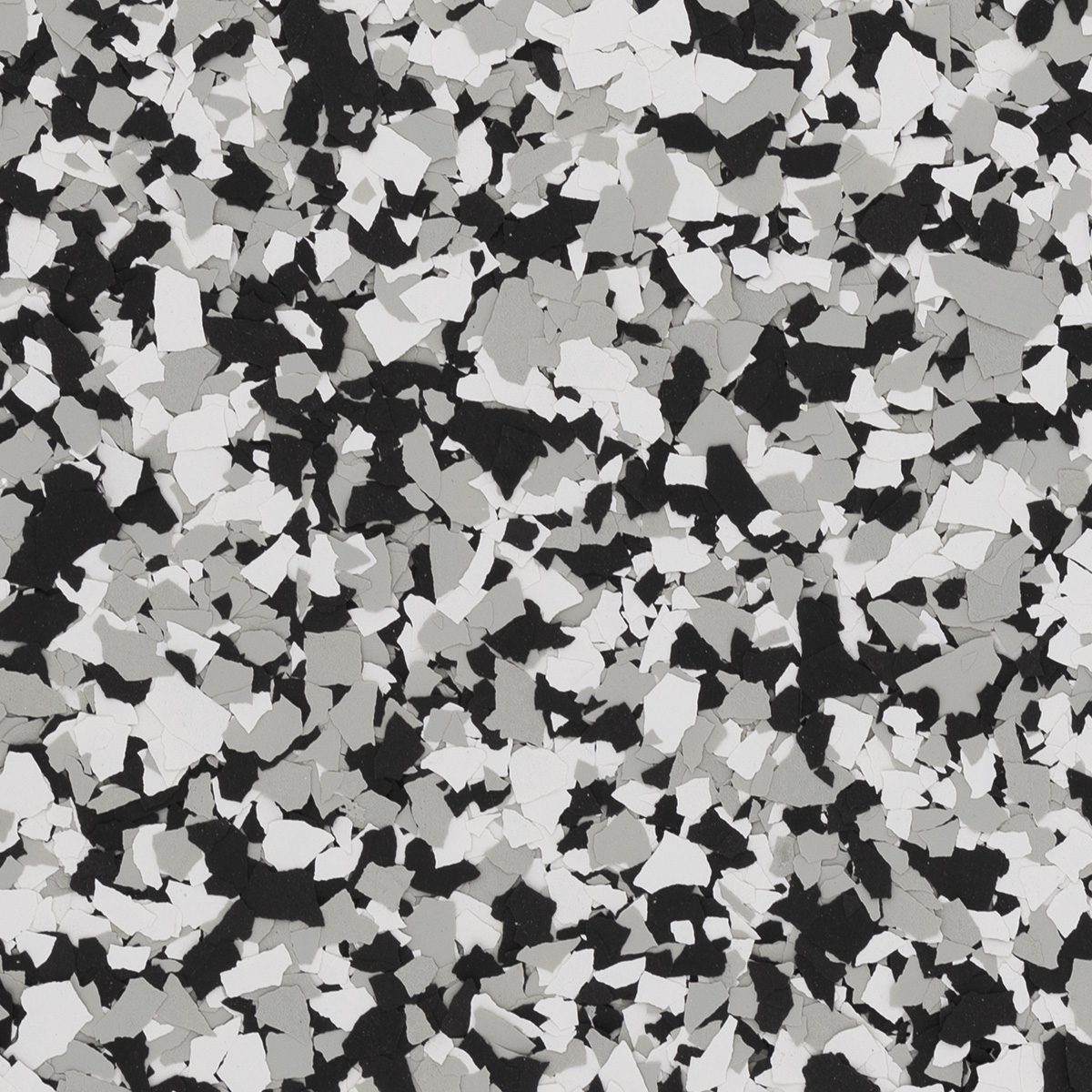

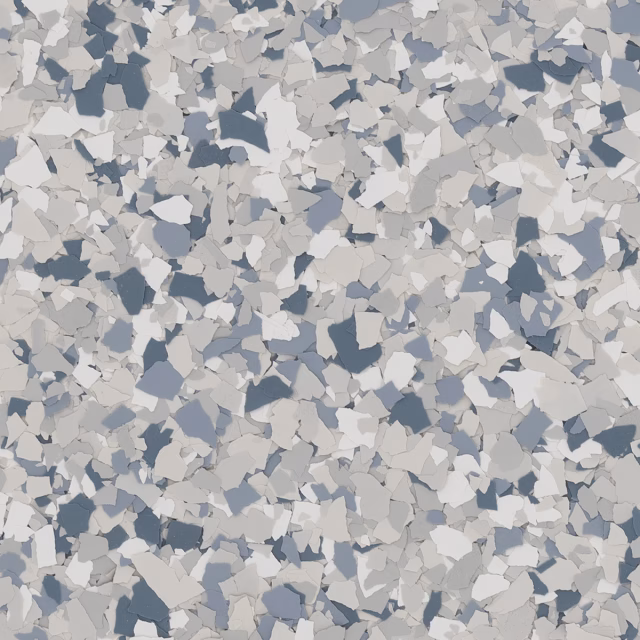

Resinwerks offers a variety of flake finishes, including custom designed systems to match your project's requirements. Download this helpful guide to learn more about our standard colors and product options.

CASE STUDY

Feldman_Chevy-07

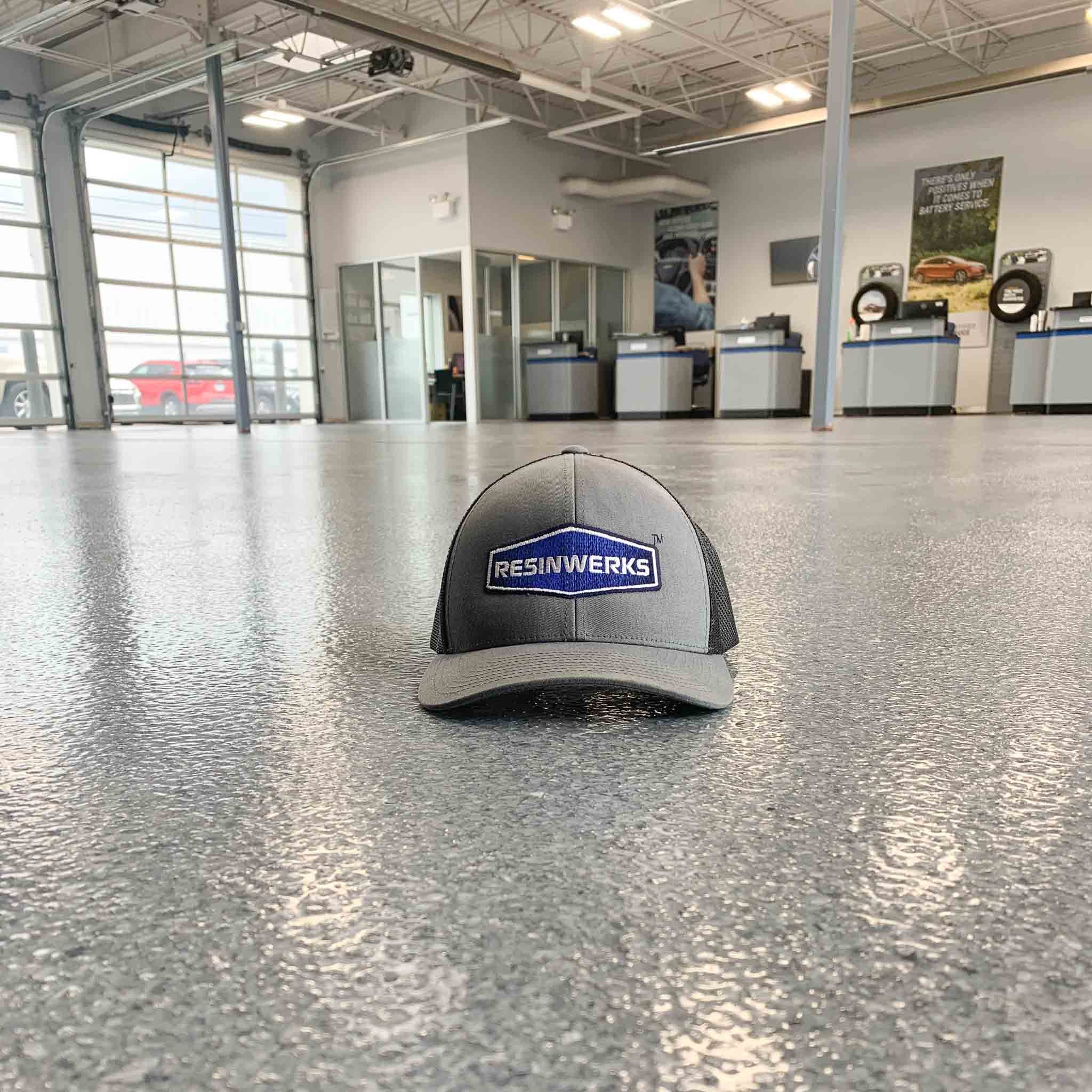

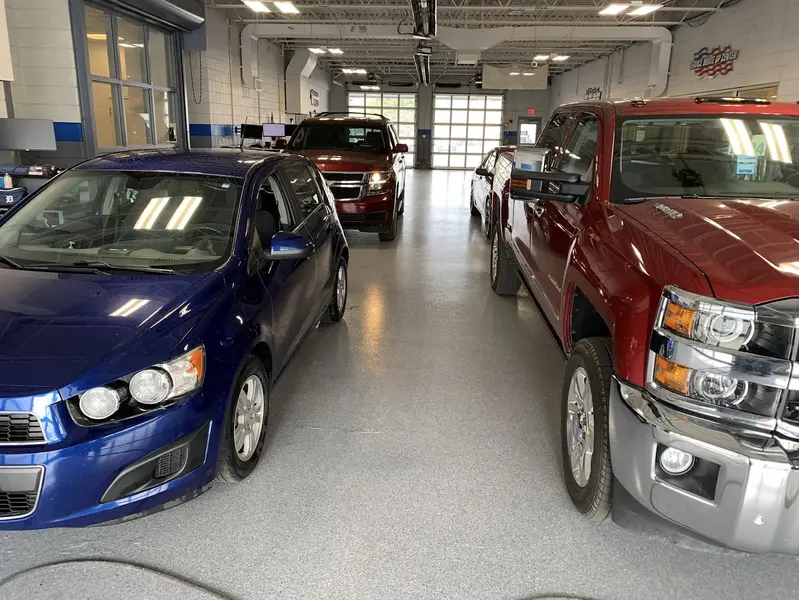

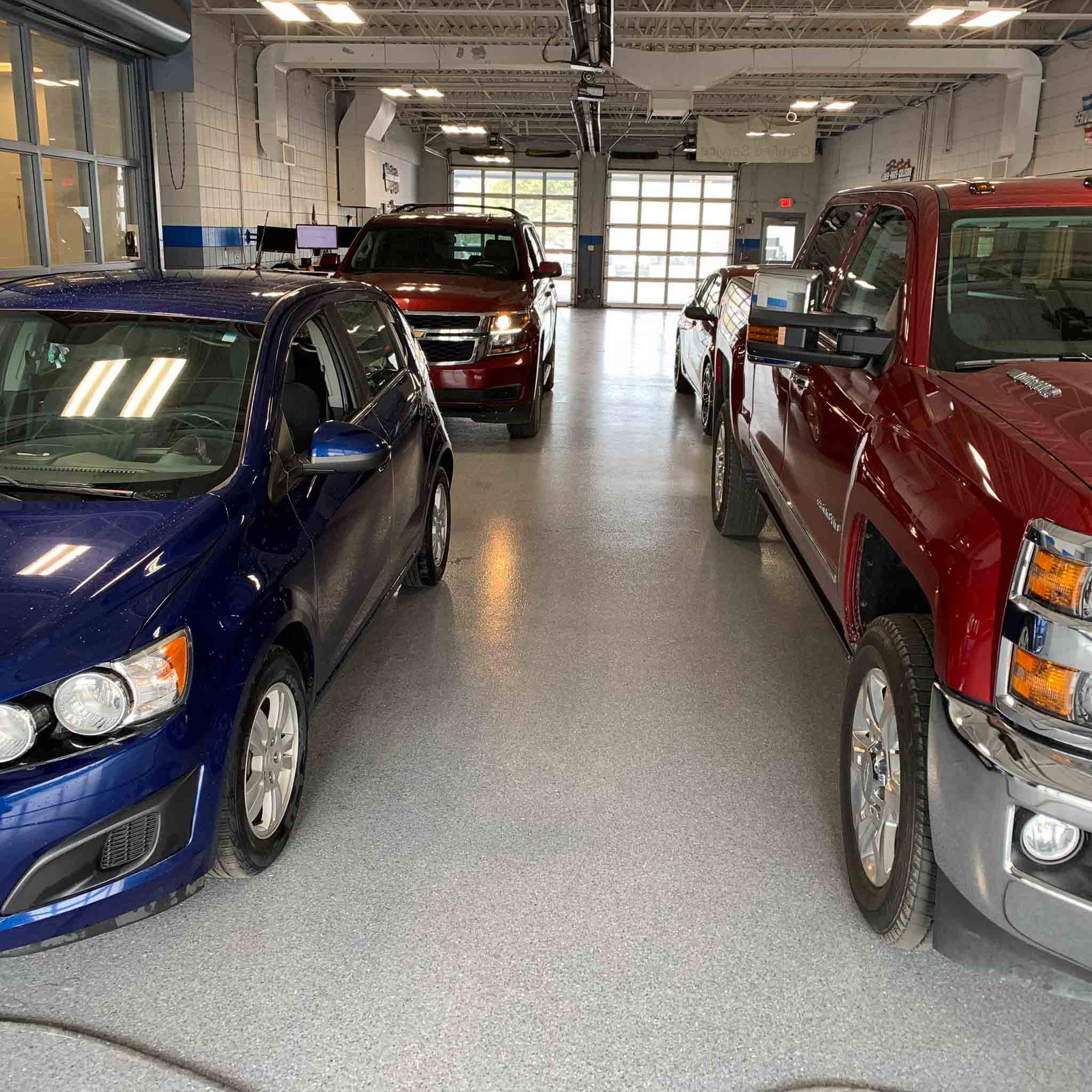

Feldman Chevrolet Service Bay Drive Up Lanes

As one of the largest car dealership networks in the upper Midwest, Feldman Chevrolet strives to maintain its reputation by providing its clients with outstanding service. In 2020, with most of the country shut down, Feldman decided to significantly upgrade their dealerships throughout the area. A key component to these projects was to install a brand new flooring surface within the service drive up lanes.
